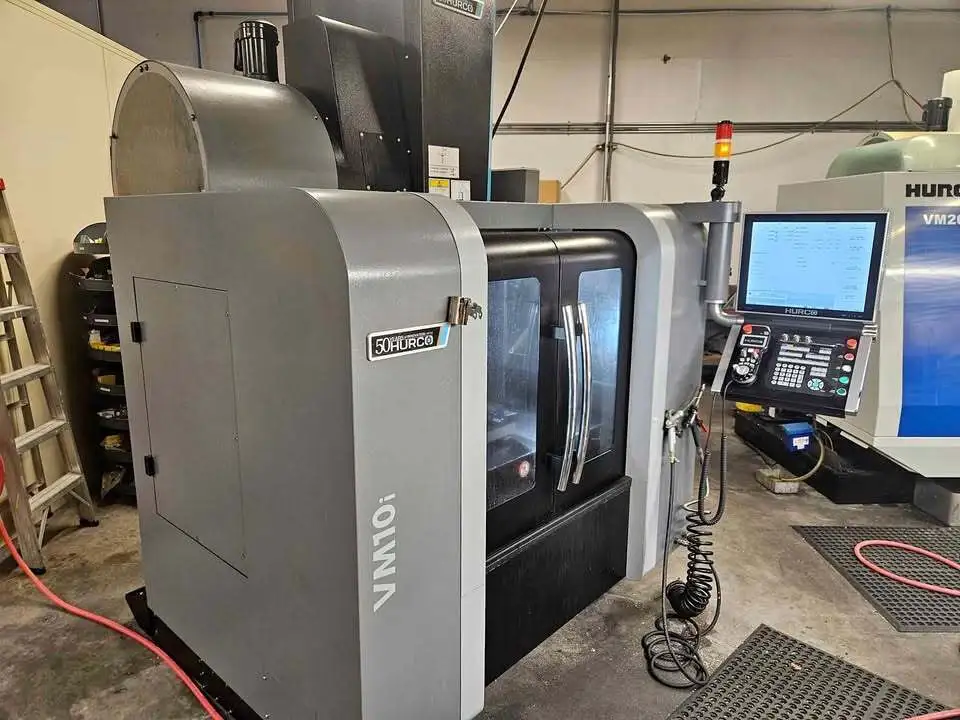

Hurco VM10i Vertical Machining Center (2018)

Hurco VM10I Vertical Machining Center
Travels & Capacity
X, Y, Z Axis Travel 26.02 x 16.02 x 20 in (660 x 406 x 508 mm)
T-Slot Size 3 x 0.71 in (3 x 18 mm)
Max. Weight on Table 3,300 lbs (1,500 kg)
Spindle Nose to Table Min./Max. 4 / 24 in (102 / 610 mm)
Table Size 30 x 16 in (762 x 406 mm)
Spindle
Max. Spindle Speed 10,000 rpm
Spindle Power (peak - 1 min) 15 hp (11.0 kW)
Spindle Torque (peak - 1 min) 45 ft. lbs @ 1,740 rpm (61 Nm @ 1,740 rpm)
Tool Changer
Tool Type CAT 40 / Big Plus® (CAT/BT 40)
Number Of Tools 24
Max Tool Diameter 3.1 in (80 mm)
Max Tool Length 9.8 in (250 mm)
Max Tool Weight 15.4 lb (7 kg)
Feedrates
Rapid Traverse X,Y,Z Axis 1,102 in/min (28 m/min)
Max Programmable Feedrate 1,102 inches/minute (28 m/minute)
Size
Max. Operating Floor Space 128.5 x 133.2 in (3,264 x 3,384 mm)
Machine Operating Height 101.0 in (2,562 mm)
Machine Weight 7,121 lbs (3,230 kg)
