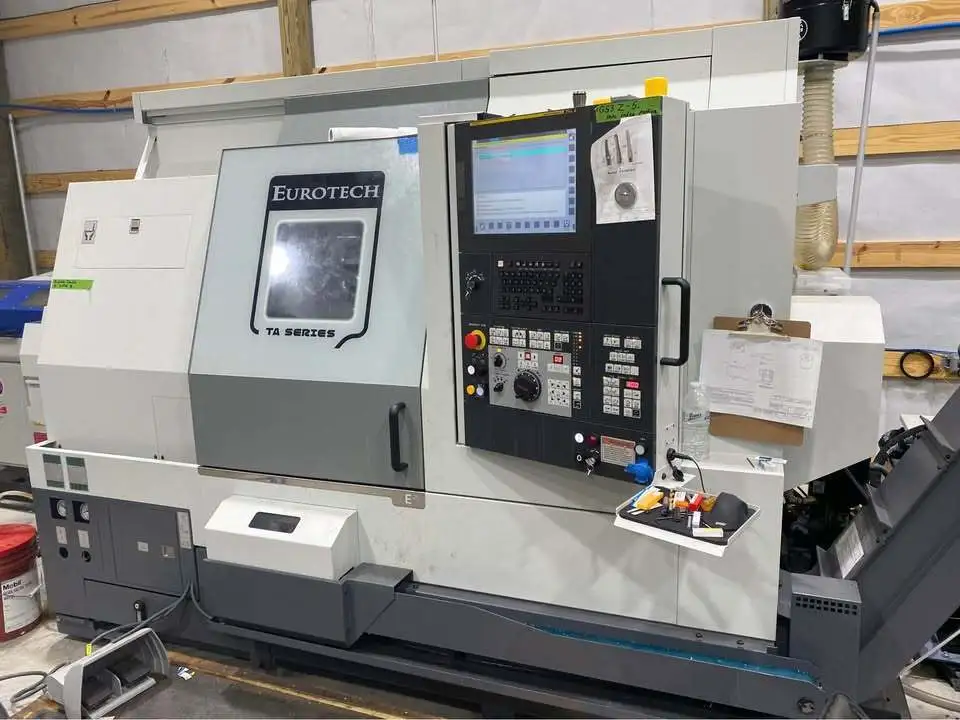

Eurotech TA-30YS 5 Axis CNC Lathe (2023)

Max. diam. swing over bed (in) - 29.92
Max. diam. swing over slides (in) - 23.62
Max. turning DIA. (in) - 18.11
Dist. btwn spindle & tailstock center (in) Z400 –
Dist. btwn spindle & tailstock center (in) Z640 –
Dist. btwn spindle & tailstock center (in) Z1100 –
Dist. btwn center of spindles (in) Z640 - 24.61
Dist. btwn center of spindles (in) Z1100 - 42.72
X-axis travel (in) - 12.2
Z-axis travel (in) Z400 - 15.75
Z-axis travel (in) Z640 - 25.2
Z-axis travel (in) Z1100 - 43.31
Y-axis travel (in) - 2.76 -1.97
B-axis travel (in) Z400 –
B-axis travel (in) Z640 - 25.2
B-axis travel (in) Z1100 - 43.1
Fast feedrate X (m/min) Fast feedrate Z (m/min) - 30
Fast feedrate Y (m/min) –
Fast feedrate B (m/min) - 30
Axis acceleration - 1g=9,8 m/s2
Spindle inside DIA. (in) - 3.58
Max. bar DIA. (in) - 3.23
Spindle power (HP (max./S6 40%) - 56.3 / 36.2
Turning torque (lb.ft) - 752.3 (MAX) 531 (S6 40%)
Morse Cone DIA. 90x120 LIVE CENTER –
Morse Cone DIA. 90x120 ROTARY QUILL –
Tailstock travel (in) Z400 –
Tailstock travel (in) Z640 –
Tailstock travel (in) Z1100 –
Max. force (lbf) –
Number of positions -12
Section of tools (mm) - 25×25(Dia 50)
Changing time - 30 DEG .2s – 180 DEG .5s
Interlocking force at 45 bar (kgf) - 5090
Number of driven tools - 12
Turning speed (rpm) - 12000
Power (HP) (max./S1) - 15.2/10.9
Max. torque (lb.ft) - 55.3
Max. speed (rpm) - 4500
Bearing outside DIA. (in) - 5.9
Bearing inside DIA. (in) - 3.94
Spindle nose - ASA 6" A2
Spindle inside DIA. (in) - 2.4
Bar DIA. (in) - 2.05
Chuck DIA. (in) - 6.89
Chuck bore (in) - 2.2
Power (HP) - 18.8 / 10.7
Hydraulic oil tank (liters) - 2.6
Lubrication oil tank (liters) - 1
Installed power KVA - 65
