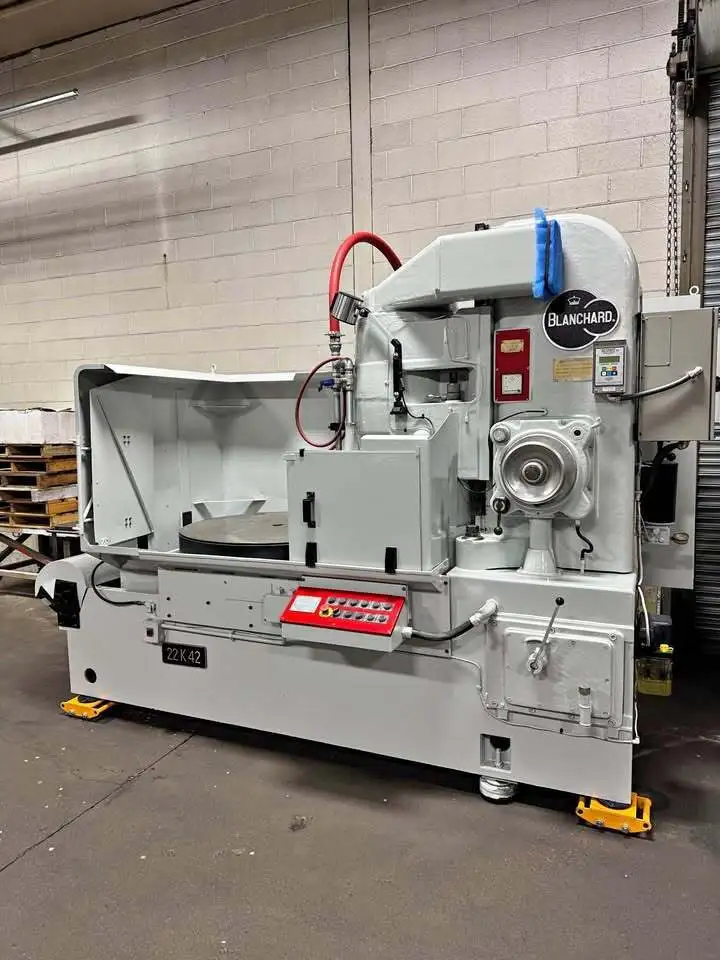

Blanchard Model 22K-42 42" Vertical Spindle Rotary Surface Grinder
Specifications and Equipment
Diameter of magnetic chuck: 42"
Maximum swing inside splash guards: 48"
Maximum work height under new wheel: 12"
Grinding wheel size: 22" Diameter
Grinding wheel type: Segmented (Cortland type)
Grinding wheel speed: 720 RPM
Grinding wheel motor: 40 HP AC
Table speeds (6): 6 to 33 RPM
Automatic down-feed rate: 0.004 to 0.080 IPM

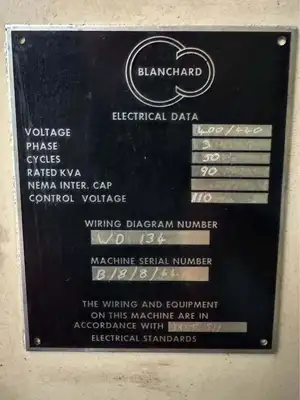

Current Electrics: 460/3/60
- Segmented Grinding Wheel
- Power rapid traverse to wheelhead
- Magnetic chuck with sectifier and neutrofier
- Splash guarding
