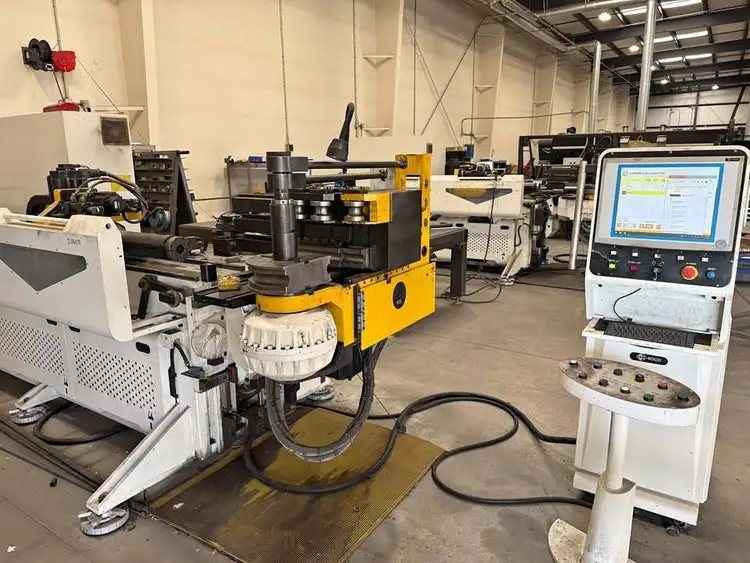

Soco SB-63x4A-3SV (2021)

Mild Steel Capacity - Ø63.5 x 2.5t
Stainless Steel Capacity - Ø63.5 x 1.9t
Max. Tube Length over Mandrel - 3770 mm
Max. Collet Feeding Length Stroke - 2600 mm
Draw Bending:
Round Tube - 1.5D ~ 4D
Rectangular Tube - 2.5D ~ 4D
Roll Bending:
Round Tube - 6~∞
Rectangular Tube - 8D ~ ∞
Max. Draw Bending Radius - 250
Max. Bending Angle - 190°
Bending Accuracy - ±0.1°
Roration Accuracy - ±0.1°
Feeding Accuracy - ±0.1°
Travels -
Z Axis: 1.5 m
X Axis: 1.6 m
Height: 3 m
