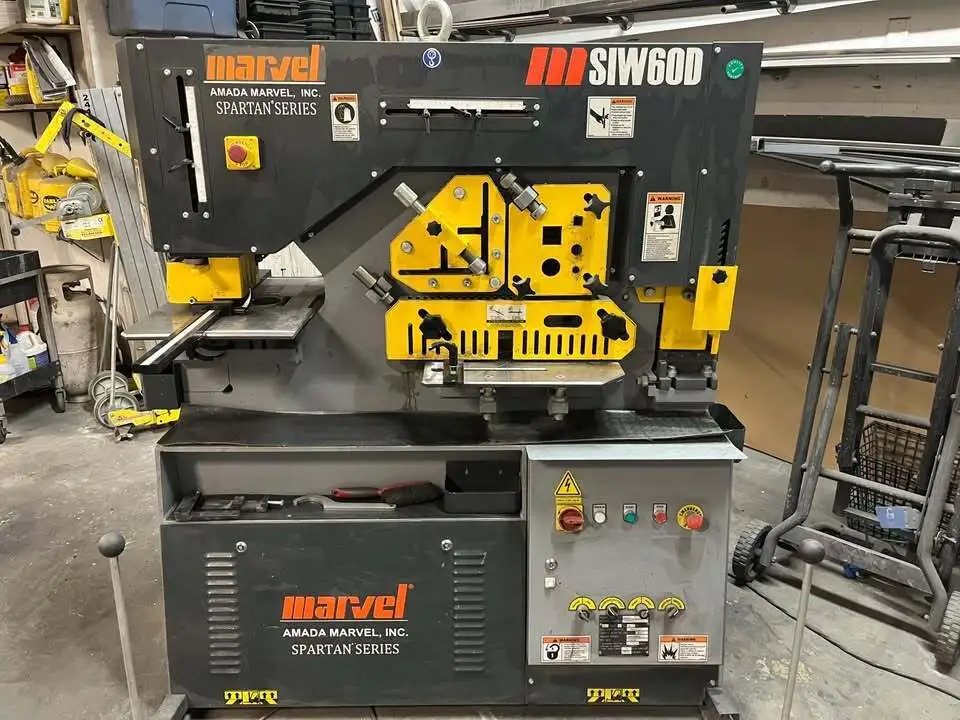

Marvel Amada Spartan MSIW60D Ironworker (2021)

Punching:
Punch Pressure: 60 Tons
Standard Tooling: 1 1/2″ in 1/2″
CPD Series: 26 Punch, 62 Die
Large Tooling: 2″ in 3/8″
CPD Series: SP51P Punch, SP80D Die
Optional Oversize Tooling: 4″ in 3/16″ Material
Throat Depth: 10″
Stroke Length: 2 5/16″
Cycles per Minute in 3/4″: 25
Punching Station Work Height: 40 9/16″

Flat Bar Shearing:
Flat Bar Shearing Capacity: 12″ in 1/2″
Max. Width x Thickness: 8″ x 3/4″
Blade Length: 12 1/2″
Angle Flange Trim: 3″
Flat Bar Shear Work Height: 35 3/4″

Angle Shearing Capacity:
@ 90°: 4″ x 4″ x 1/2″
@ 45°: 2 1/2″ x 2 1/2″ x 3/8″
Angle Shear Work Height: 44 1/2″

Bar Shearing:
Round Bar Capacity: 1 1/2″
Square Bar Capacity: 1 1/2″ x 1 1/2″

Six Cavity Round and Square Bar Shear Sizes:
Round: 1/2″, 1″, 1 1/2″
Square: 3/4″, 1 1/2″
Max. Channel Shear (Optional): 4″
Max. I-Beam Shear (Optional): 4″
Bar Shear Work Height: 44 1/2″

Notching:
Rectangular Notcher: 1 3/4″ x 3 1/2″ x 3/8″
Notcher Work Height: 35 1/2″

Standard Voltage: 7.5 HP / 230v / 3ph

Standard Features:
Punch Holder and Jog Mode
Punch Work Table: Includes back gauge and adjustable stops
Adjustable See-Through Punch Stripper: For fast and easy set up
Lower Blade: Four usable edges
Support Table: Includes guides for accurate positioning and indicator lines at 30° and 45° left and right
Adjustable Hold-Down: Holds work piece securely in position when shearing
Upper Shear Blade: Provides for minimum distortion. Two usable edges
Shearing with No Material Loss and Minimum Deformity
Shear Blades: Four usable edges
Electrical Interlock Safety Guard
Gauge Table with Stops: For precise positioning
