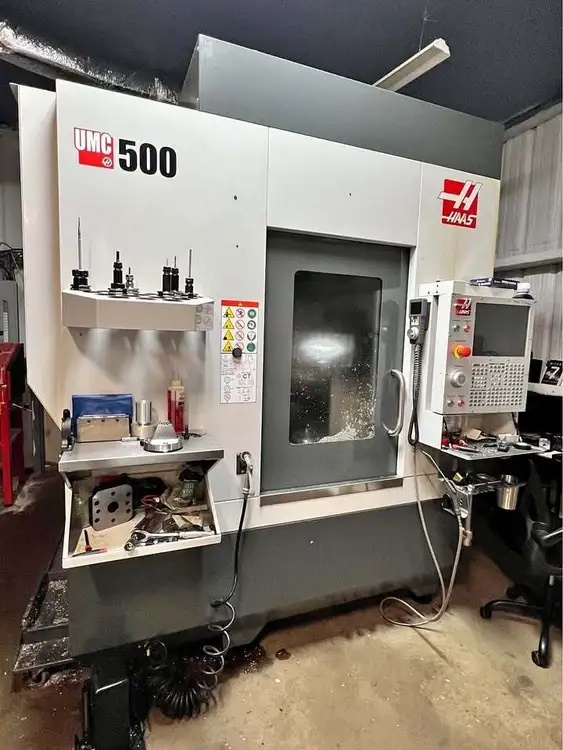

Haas UMC-500 Universal Machining Center

B Axis - Tilt:
Travel - 120 ° to 35- °
Max Speed -50 °/sec
Torque (Continuous) - 1854 ft-lbf
Brake Torque - 900 ft-lbf

C Axis Rotation:
Travel - 360°
Max Speed - 50°/sec
Torque (Continuous) -1854 ft-lbf
Brake Torque - 900 ft-lbf
Max Part Swing - 18.0 in

Platter:
Platter Diameter - 15.70 in
Max Weight on Platter - 500 lb
Max Weight on Platter w/Pallet Pool - 200 lb
T-Slot Width - 0.626 in to 0.630 in
Number of Std T-Slots - 5
T-Slot Center Distance - 2.48 in

Feedrates:
Max Cutting - 650 ipm
Rapids on X - 900 ipm
Rapids on Y - 900 ipm
Rapids on Z - 900 ipm

Axis Motors:
Max Thrust X - 3300 lbf
Max Thrust Y - 3300 lbf
Max Thrust Z - 4050 lbf

Tool Changer:
Type - SMTC
Capacity - 30+1
Maz Tool Diameter (full) - 2.5 in
Max Tool Diameter (adjacent empty) - 5.0 in
Max Tool Length (from gage line) - 12 in
Max Tool Weight - 12.0 lb
Tool-to-Tool (avg) - 2.80 s
Chip-to-Chip (avg) - 3.60 s

General:
Coolant Capacity - 55 gal
