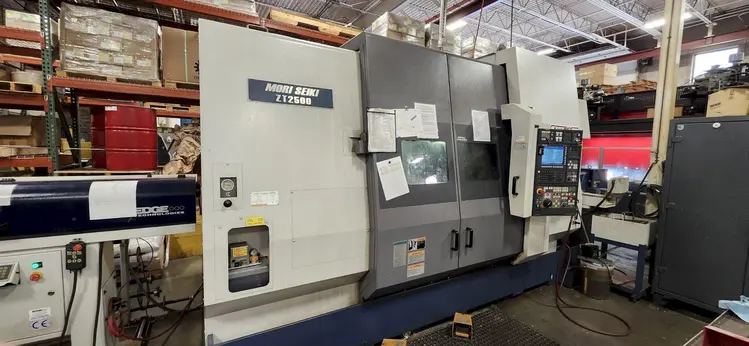

Mori Seiki ZT-2500Y Twin Spindle Live Tool Y Axis CNC Lathe (2001)

Mori Seiki Model ZT-2500Y 8-Axis CNC Lathe with Live Tool, Sub Spindle
Twin Turret
CNC Control yes
Type of CNC Control DMG MORI MSX-501 III
Number of Axes 6+
Number of Spindles 2
No. Positions on Turret 12 x 2
Chuck Size 8"
Max. Swing over Bed 26″
Max. Turning Diameter 14.1″
Max. Turning Length 51.2″
Z-Axis Travel 37.8″
Max. Center Distance 51.2″
Spindle Bore 3
Max Bar Capacity 3
X-Axis Travel 11″ Upper Turret
Y-Axis Travel (Upper Turret Only): +/- 2.8″
Spindle Speed Range 4,000 RPM
Rotary Tool Spindle Speed 4,000 RPM
C-Axis Indexing 001°
X Axis Travel - Lower Turret 7.9″
Milling Spindle Speed Range 4000 RPM
Spindle HP 30 HP
Machine Weight 31,000 LBS
