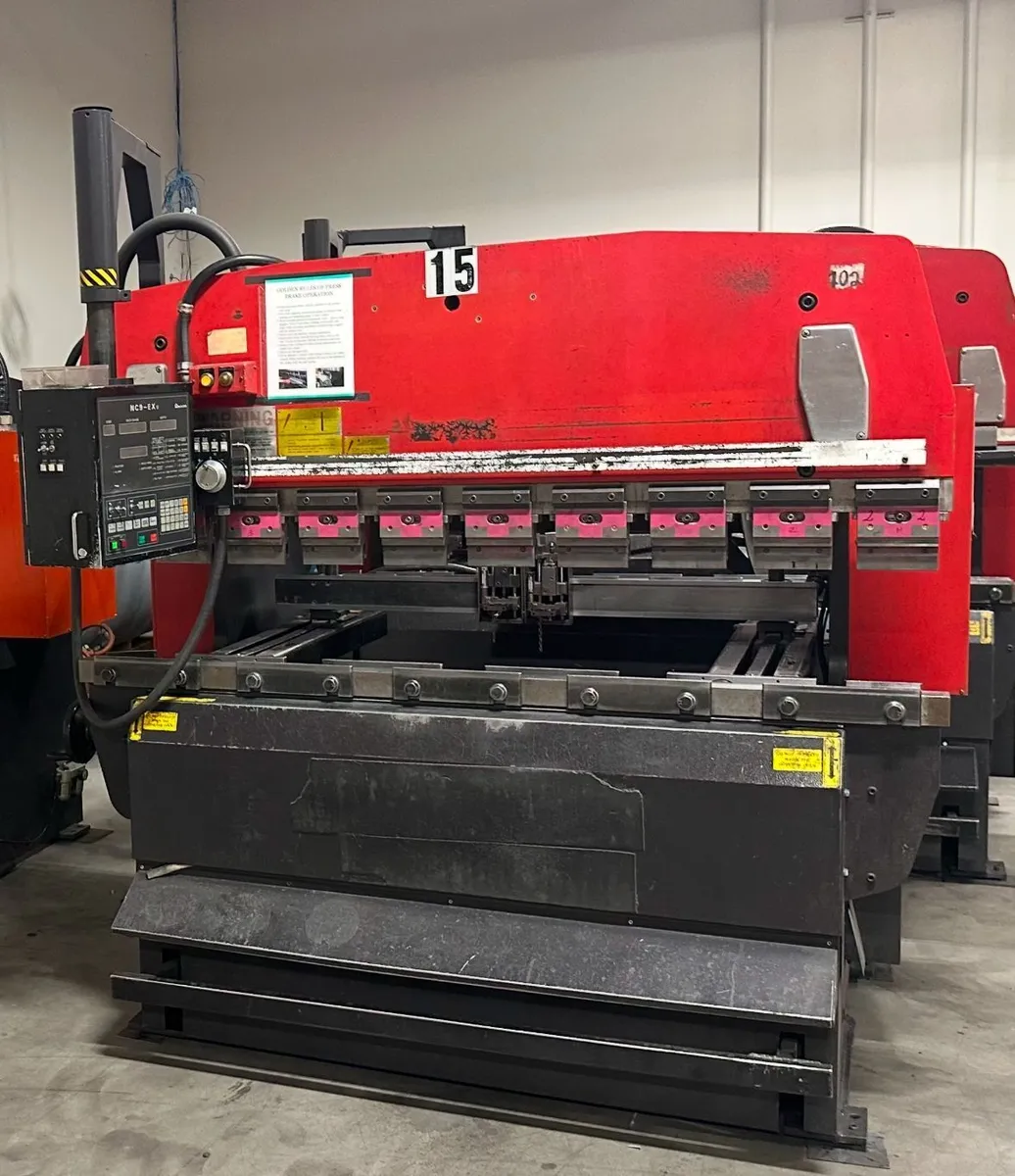

Amada RG-80 CNC Hydraulic Press Brake

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Press Brakes-Hydraulic Power
Manufacturer:
AMADA
Model:
RG-80
Stock #:
93372
Status:
For Sale
Country:
United States
size88 Ton88 Ton
Tonnage88 T79.832 t
TypeHYDHYD
Overall Length98.6"2.5 m
Between Housings6.6'2 m
Stroke3.93"99.822 mm
# Axis33

Amada RG-80 CNC Hydraulic Press Brake

Nominal Rated Capacity - 80 Ton (88 Ton Metric)
Maximum Bending Length - 98.6"
Maximum Table Length - 94.5"
Distance Between Uprights - 80.7"
Throat Depth - 15.75"
Length of Stroke - 3.94"
Open Height - 14.57"
Ram Repeatability: +/- .0004"
Back Gauge Travel - 19.6"
Speeds: Approach 106 Ipm
Bend: 2 - 19 Ipm
Return - 122 Ipm
Main Drive Motor - 7.5 Hp

NC9- EXII Control
Manual Pulse Generator
Misc. Upper & Lower Die Clamps
