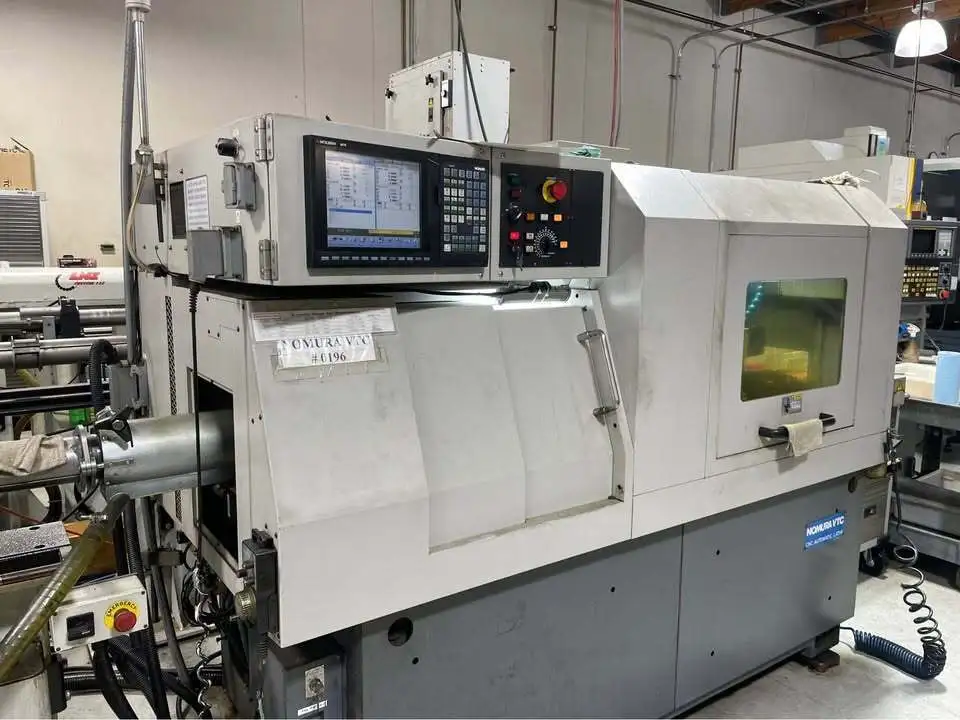

Nomura VTC NN-20J Swiss Type CNC Lathe (2012)

Nomura VTC NN-20J Swiss Type CNC Lathe (2012)

Number of axes : 8
Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 7 7/8 Inches
- Spindle speeds : 10.000 [rpm]
- Spindle power : 2.2 [kW]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10.000 [rpm]
- Spindle power : 2.2 [kW]
- Number of guide bush holders : 2
GUIDE BUSH HOLDER 1
- Number of positions : 11
- Number of motorized positions : 5
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 3
- Live tools speed : 6000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 6
POWER SUPPLY
- Total installed power : 14 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.270 x 1.135 [mm]
- Machine height : 1.730 [mm]
- Machine weight : 2.700 [kg]
