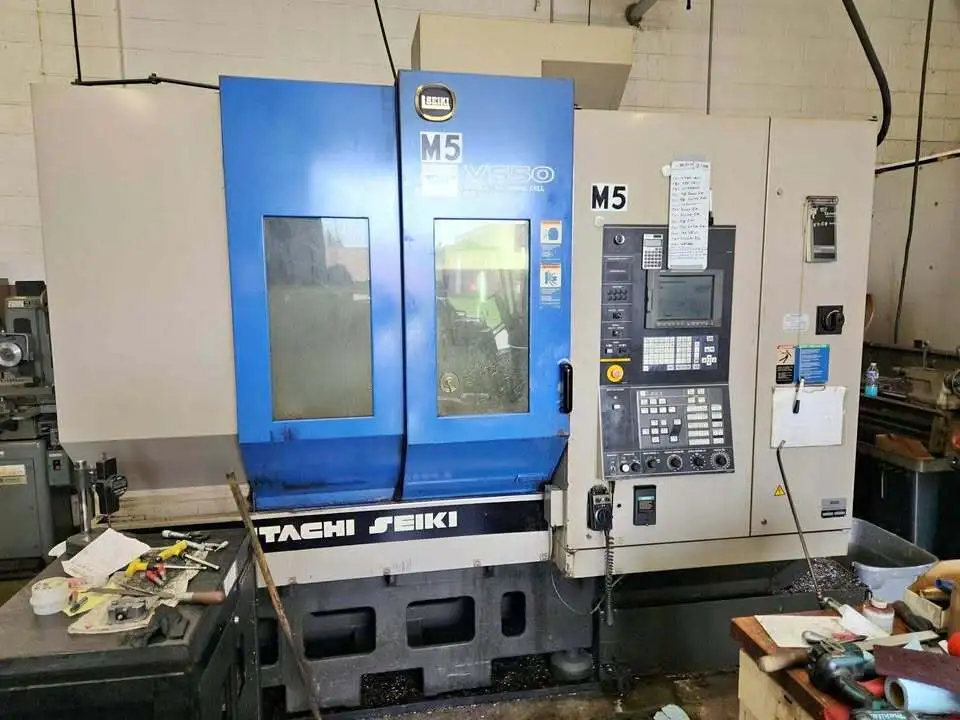

Hitachi Seiki VS 50 CNC Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
Hitachi Seiki VS 50 CNC Vertical Machining Center
Travels:
X-Axis: 40.1″
Y-Axis: 20.1″
Z-Axis: 17.7″
Table:
Length: 44″
Width: 20″
Max Weight on Table: 1700 lbs
Spindle:
Taper Size: 40
Speed Range: 60 – 10,000 RPM
Spindle Power: 30 HP
Feed rates:
Rapid X,Y & Z: 1570 inch/P.M
Cutting Feedrate: 945″ inch/ P.M
Automatic Tool Changer:
40 Taper
Capacity: 20
Max Tool Weight: 31 lbs
Max Tool Length: 11.8″
Max Tool Dia.: 4.90″
General:
Air Required: 80 psi, 4 scfm
Power: 205-220v / 66FLA / 3-Phase
Overall Dimensions: ” High
Weight: 18000 lbs
30-tool CAT40 ATC
Thru-spindle coolant
Tool probe & part probe
10,000 RPM spindle
Includes all manuals and keys
