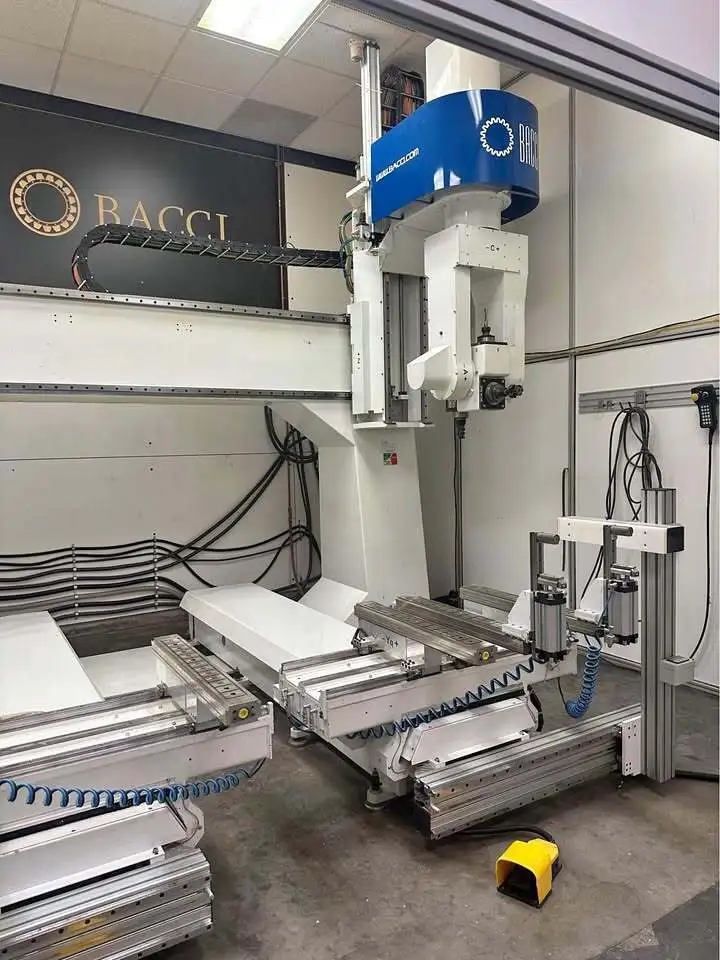

Bacci Master Jet 5-Axis Machining Center (2014)

Bacci Master Jet 5-Axis Machining Center (2014)

• Axis X = 3.600 mm. (3050mm pass through distance between the columns)
• Axis Y/Y1 = 2.200 mm. (2 independent axes)
• Axis Z = 830 mm.
• Axis C = +/-200°
• Axis A = unlimited

Operating Head; Single knuckle type “3Folding” equipped with N°1 Auto-toolchanging spindle

13,6HP/HSK63F + 2 manual toolchanging spindles 10HP/ER32. All spindles with ceramical bearings & Max.RPM 24.000

2- Electronic Inverters to control the rotation speed of the spindles

NC Automatic toolchanger on wheel with 8 tools pos (2 HSK63F cones included)

2- TGV Tables in steel tubular structure 1170mm wide each one equipped with 3 steel supports 750mm long

6- Pneumatic jigless clamps (tiltable and adjustable in height) with double rods (3 clamps for each table, one for
each TGV beam)
- Semi-Automatic positioning of the clamps (in Horizontal & vertical) managed by Pitagora software
- Manual Feeding (no hoppers)
- N° 2 Side fence with manual positioning through digital read-out
- Machine prepared for vacuum connection
- N°2 Vacuum pumps 165m3/h included
- N° 1 full digital Numeric Control “OSAI” + PC Office
- N° 1 air conditioner for electrical cabinet
- Programming by Optimizing & Anticollision check CAM Software PITAGORA (Bacci Exclusive)
- Teleservice through Internet connection
