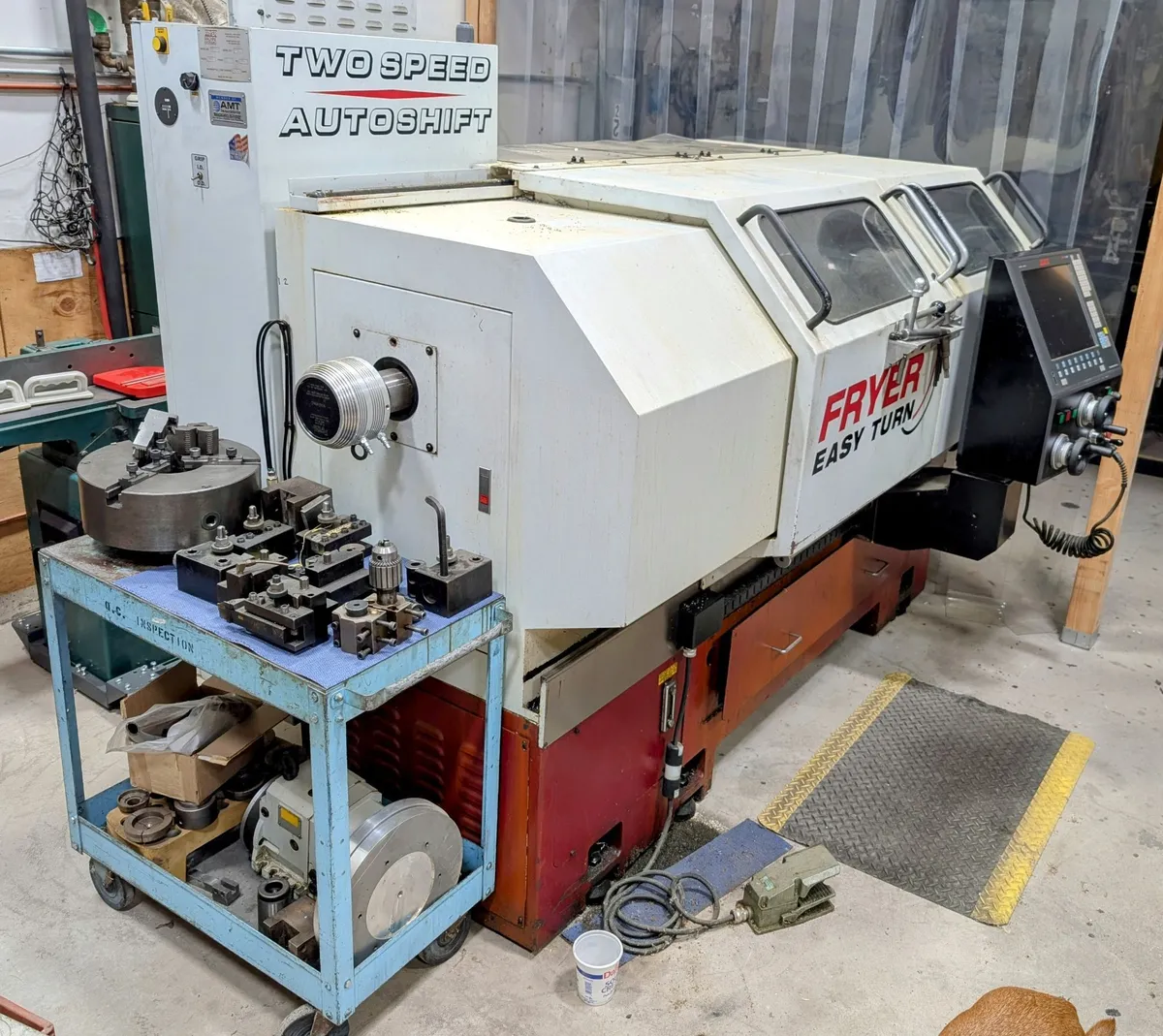

Fryer ET-18 Flat Bed CNC Lathe (2015)
Have one to sell?
ConditionUsed
1 available
Designed by toolmakers for toolmakers, the Fryer Easy Turn Series provides rugged construction and high accuracy in a compact toolroom lathe. The Easy Turn is easier to use than a conventional lathe yet offers the productivity of a CNC. Time consuming manual set-ups for threading, chamfers, and contours are eliminated by the Easy Turn's handle driven "Do One" cycles and electronic stops. Multi-mode operations allow manual use, semi-auto use and full CNC operation. This flexibility is perfect for repair shops, tool and die, prototype and job shops alike.
Fryer ET-18 Flat Bed CNC Lathe (2015)
Swing Over Bed 18”
Swing Over Cross Slide 9.125”
Center Height 9.125”
Distance Between Centers 40”
Width of Bed 14”
Width of Cross Slide 8.5”
Cross Slide Travel (X) 10”
Longitudinal Travel (Z) 37”
Max Part Weight - Unsupported 500 lbs
Max Part Weight - Supported w/ S/R 2,500 lbs
SPINDLE
Spindle Nose Camlock D1-6 (D1-8)
Spindle Bore ” 2.05”
Spindle Nose Taper MT - 6 MT -
Spindle Motor HP (Peak) 10 HP
Spindle Speed (RPM) 50 - 2,500
Speed Selection Single Gear Range Auto Shift Auto Shift
TAILSTOCK
Quill Travel 5.5”
Quill Diameter 2.5”
Quill Taper Hole MT-5
PERFORMANCE
Positioning Accuracy +/- 0.0002”
Positioning Repeatability +/- 0.0001”
Rapid Traverse (X,Z) 400 IPM
Servo Type AC Digital Brushless
Axis Thrust (Peak) 3,058 lbs. X 3,504 lbs. Z
GENERAL INFO
Air Requirements 90 PSI - 5 CFM
Coolant Capacity 10 Gallons
Coolant Flow 2 GPM
Power Requirements 35 AMP
Voltage Requirements 208-250 VAC 3 PHASE (380-500 VAC Optional)
Shipping Dimensions* (WxDxH) 86”x72”x68”
Operating Dimensions (WxDxH) 86”x74”x68”
Machine Weight 6,500 lbs.
Touch 2100 CNC Control
