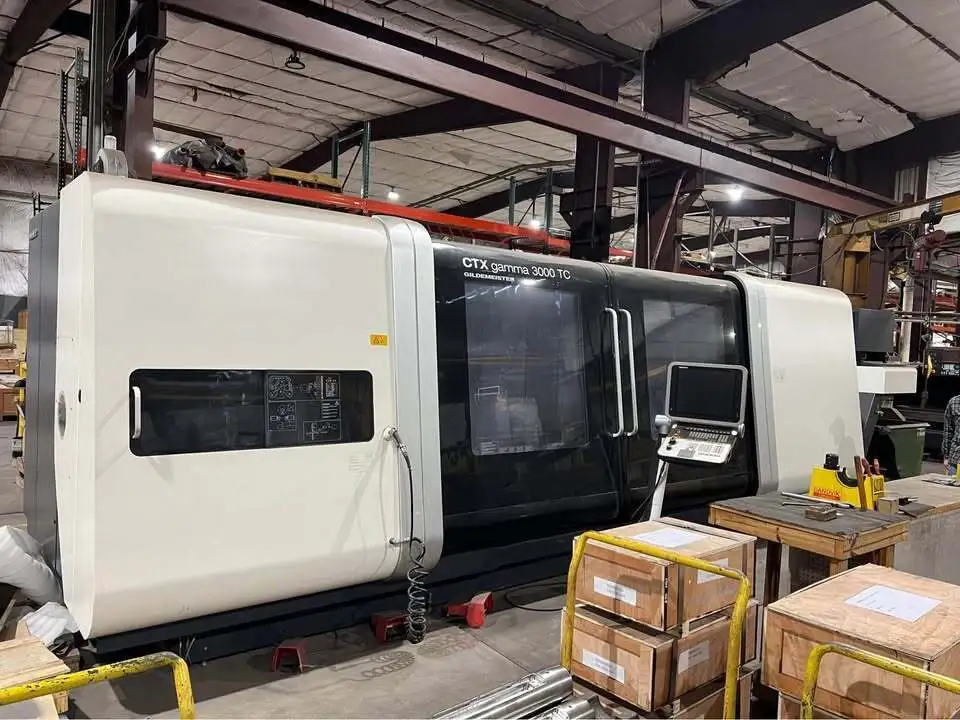

DMG Mori CTX Gamma 3000TC Multi Task CNC Lathe

Description

Very Low Hours, Turn & mill machine for 6-sided complete machining
Max. workpiece diameter
27.6 in.
Max. workpiece length
118.1 in.
Max. bar diameter
5 in.
Max. X-axis travel
31.5 in.
Max. Y-axis travel
16.5 in.
Max. Z-axis travel
120.1 in.
Integrated spindle drives with 2950.2 ft lb Nm at the main spindle for maximum cutting performance
Optional counter spindle for 6-sided complete machining with up to 2,200 Nm
Material removal rate ISM 102 to 0.1 ft3 / min (CK45)
Integrated C-axis (0.001 °)
Complex turning and milling operations with an ultra-compact Turn&Mill spindle with 162.3 ft lb torque
Turning and milling spindle compactMASTER with 12,000 rpm, 48.3 hp and 162.3 ft lb - available as high-speed version with 20,000 rpm
16.5 in Y-stroke for more flexibility
Automatic tool change. 36-fold disc magazine in standard, max. 180 stations in the optional chain magazine.
Optional second tool carrier for highly productive turn & mill machining

VDI 40 turret rated at 4,000 rpm, 20.7 ft lb and 13.4 hp or VDI 40 Direct Drive turret rated at 10,000 rpm, 25.1 ft lb and 19 hp
"< 30 sec. tool set-up time and < 0.2 μin repeatability with
TRIFIX® precision quick-change interface as standard"
Easy to use turret steady rests and turret centers with the technology cycle (optional)
With live access movable three jaw, steady rest 80 station tool holder +6 more on opposite side low hour machine
