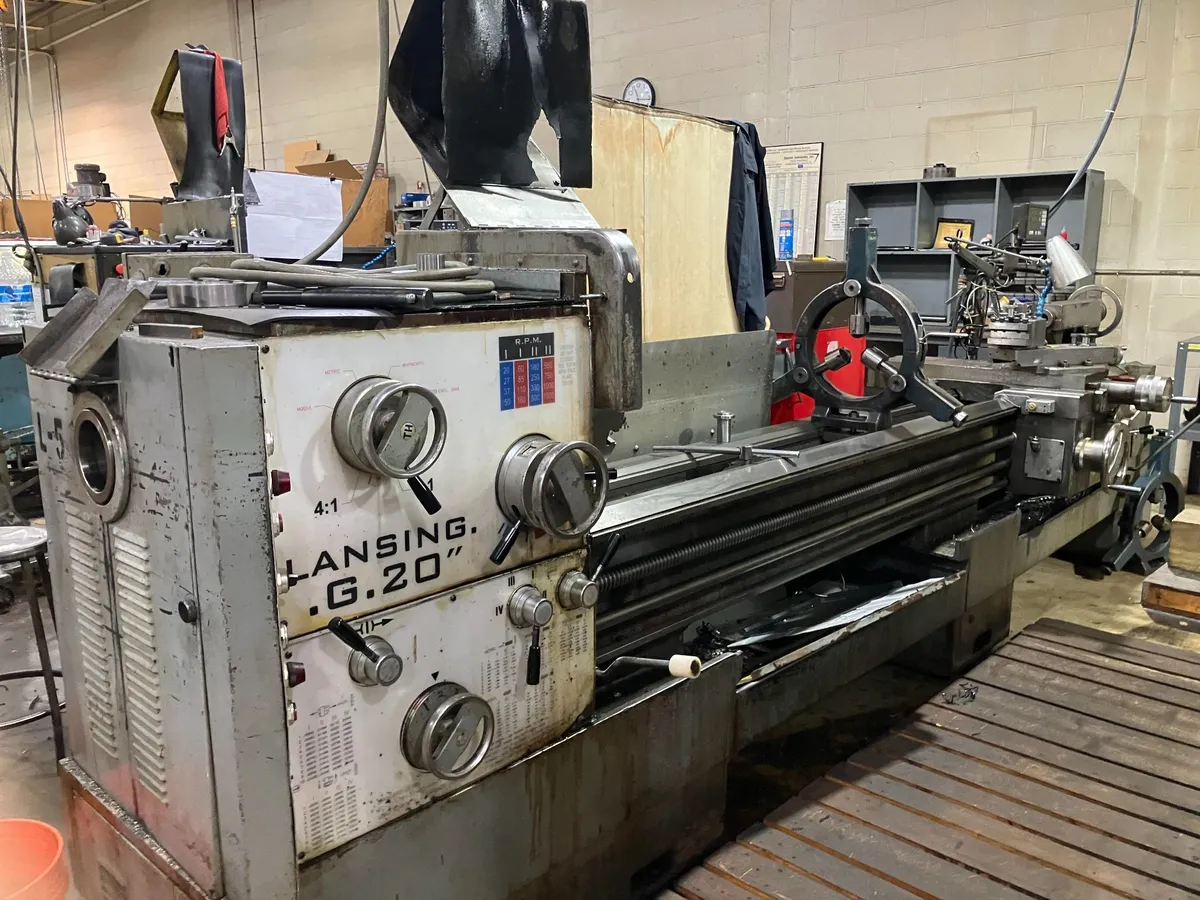

LANSING G20 20" x 120" Engine Lathe (1980)
Chuck Size: 16" inches dia.
Spindle Speed RPM: 20-1500
Swing: 18" inches over bed
Centers: 120" inches
Spindle Bore: 4.25" inches
Power: 25 horsepower
Swing Over Cross Slide: 12" inches
CNC Control: no
Dimensions: 12' 11"L x 5'W x 4' 9"H,
Weight: 12,000 pounds
Inch/Metric threading
Aloris 2 way quick change tool holder with 6 tool holders,
Built in full length chip/coolant catch pan,
25hp 220/440v 3ph,
Overall Dim. 12' 11"L x 5'W x 4' 9"H,
(2) Steady rests both are roller type
(1) Follow rest
Est. Wt. 12,000 lbs.
Chuck jaws and Misc. tooling
Rapid traverse for carriage (both directions)
