Summit® 20” Engine Lathes are a great investment and turn rings around other lathes in this class. They are affordable, rugged, reliable and easy to operate. They are ISO compliant, include a vast array of features and accessories as “standard” and they offer a variety of built-in safety features. Constructed from 100% cast iron, Summit 18” and 20” Engine Machine Lathes are built to last and are known for consistent performance and durability even under the most demanding work conditions. Standard on every machine lathe is a quick-change gearbox for cutting metric, module and diametrical pitch threads, as well as standard American (inch) threads.

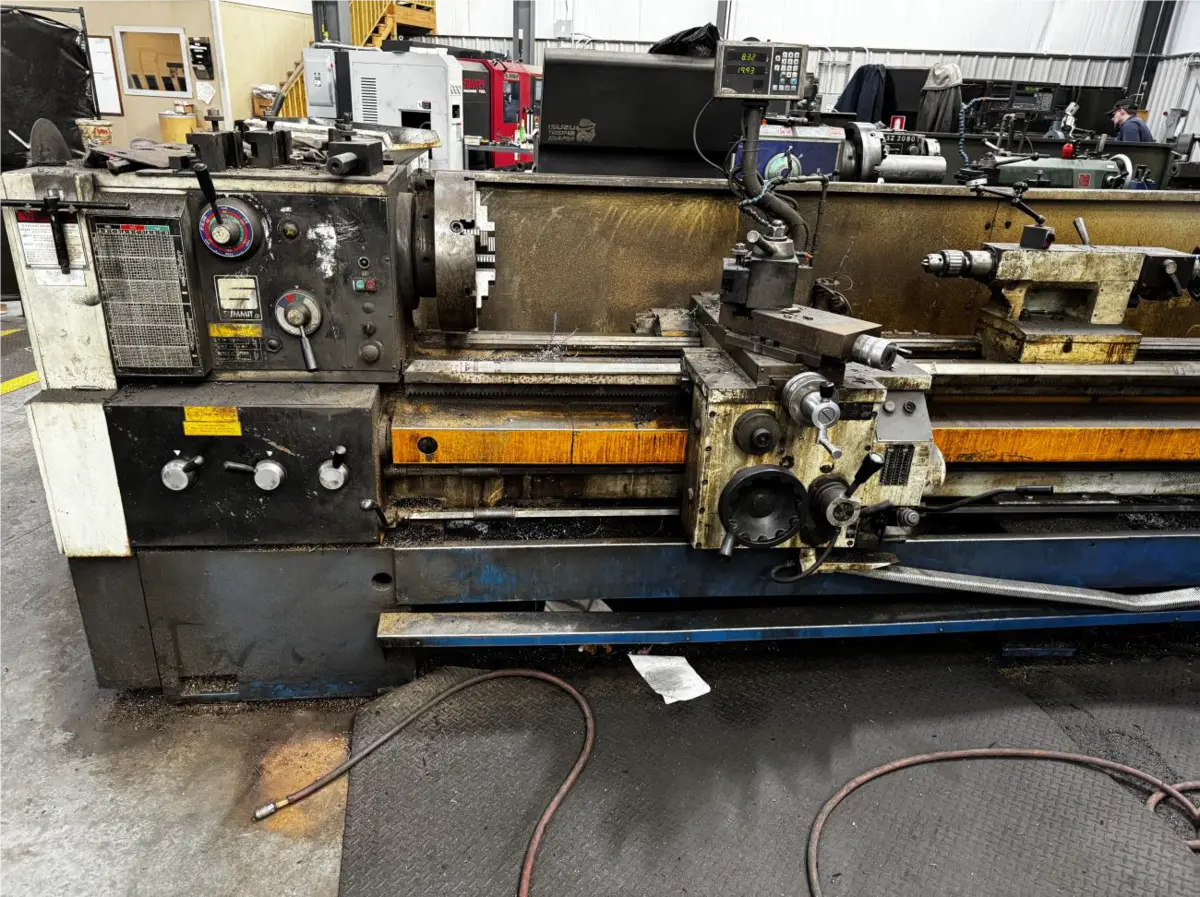

Summit 20-4X160A 20" x 160" Engine Lathe
Swing 20"
Centers 160"
Spindle Bore 4"
Power 10 hp
RPM 1,500 RPM
Swing Over Cross Slide 13.25"
Weight 5590 lbs.
2 steady rests,
tool post: Aloris DA (no holders), & chuck wrench.
New spare coolant pump (never installed)
2-way rapid traverse, 4-way joystick feed lever
16” 4-jaw independent chuck,
2 axis DRO
2-speed tailstock
full length splash guard
