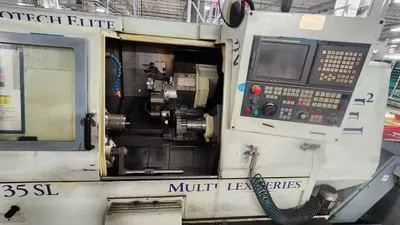

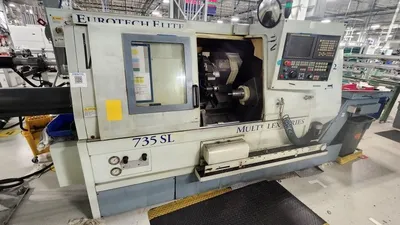

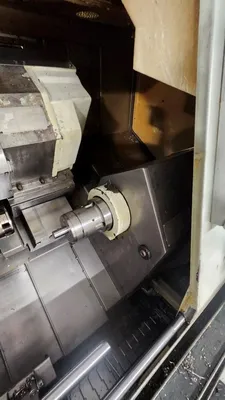

Eurotech 735SL Live Tool CNC Lathe (2003)
Have one to sell?
ConditionUsed
1 available
Eurotech 735SL CNC Lathe (2003)
Capacity:
---------------
Swing: 20.47"
Max. Turning Diameter: 12.6"
Machining Length: 20.08'
Main Spindle:
---------------
Motor: A2-5
Spindle Nose: A2-6
Bar Capacity: 2.76"
Max Speed: 4,000 RPM
Sub-Spindle:
---------------
Motor: 15
Nose: A2-6
Bar Capacity: 1.77"
Speed: 5,000 RPM
B-Axis Travel: 18.90"
Turret:
---------------
Number of Tools: 12 Stations
Milling Motor: 5 HP
Milling Speed: 4,000 RPM
General:
---------------
Machine Dimensions: 167" x 77.4" x 79.53"
Machine Weight: 12,200 Lbs
Fanuc 18iT CNC
Sub-Spindle
Live Tooling Capability
Full C-Axis Both Spindles
LNS Super Hydrobar
High Pressure Coolant
Parts Catcher & Conveyor
Alert Light
Chip Conveyor
Comments:
In operation until Jan 2025
Buyer pays removal and transport costs
The static and live tool holders are being retained by the owner
