Haas TR200Y 5th Axis Trunnion Table (2018)
Sold

Haas TR200Y 5th Axis Trunnion Table (2018)

Accessories-Rotary Tables
Manufacturer:
HAAS
Model:
TR200Y
Year:
2018
Stock #:
93243

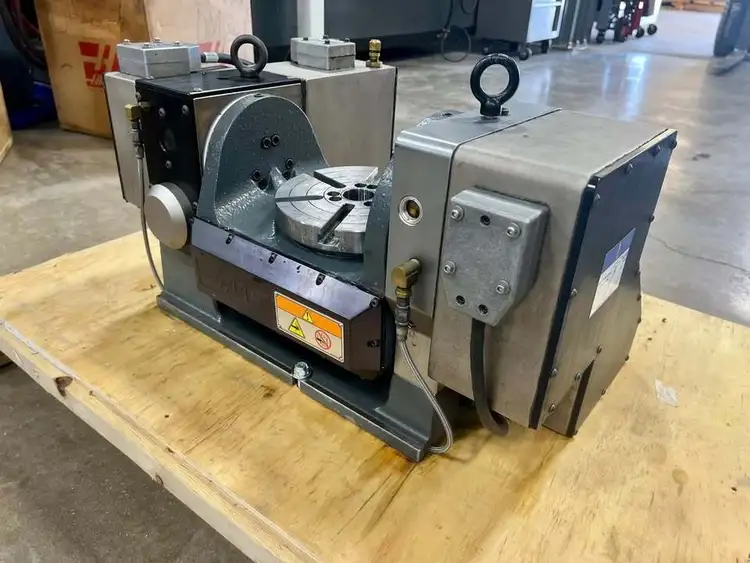

The TR200Y is a dual-axis trunnion rotary table that offers maximum rigidity and accurate performance for 3+2 and full 5-axis machining of small to medium parts. Scale feedback on the A (tilting) axis increases positioning accuracy and repeatability. The TR200Y is designed to be installed with the tilt axis parallel to the Y axis on VF-3 and larger VF Series machines, to allow more usable mill table space (extended Z-axis clearance options are highly recommended).
size7.87"7.87"
Dimensions33.0 in x 23.0 in x 21.0 in33.0 in x 23.0 in x 21.0 in
Weight400 lb400 lb

Platter Diameter - 7.87 in
Max Weight on Platter - 80 lb
Part Swing Max - 8.1 in
Number of Std T-Slots - 6 @ 60°

Spindle - A (tilt)
Max Speed - 100 °/sec
Torque (Continuous) - 150 ft-lbf
Max Tilt ±: ± 120 °
Backlash - 30 arc-sec
Gear Ratio - 63:1
Timing - 2:1
Brake Torque @ 100 psi/6.9 bar - 300 ft-lbf

Spindle - B (Rotary)
Max Speed - 130 °/sec
Torque (Continous) - 150 ft-lbf
Runout Max - 0.0005 in
Backlash - 30 arc-sec
Gear Ratio - 63:1
Timing - 2:1
Rotation - 360 °
Brake Torque @ 100 psi/6.9bar - 100ft-lbf

Indexing - A (Tilt)
Max Rotation/Step - ± 120 °
Resolution - 0.001 °
Accuracy (±) - ± 15 arc-sec
Repeatability - 10 arc-sec

Indexing - B (Rotary)
Max Rotation/Step (with rotary control) - 999.999 °
Resolution - 0.001°
Accuracy (±) - ± 15 arc-sec
Repeatability - 10 arc-sec

General -
Operating Temp (max ambient) 100 °F

Air Requirements -
Air Pressure Max - 150 psi
