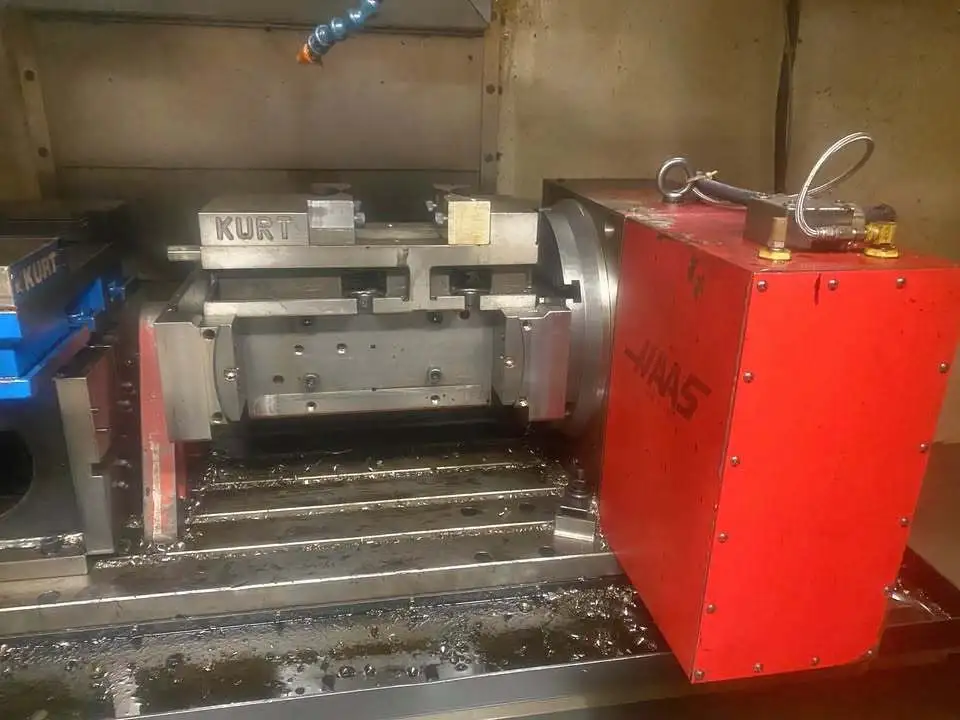

Haas HRT310 CNC Rotary Table (2004)
Have one to sell?
ConditionUsed
1 available
For holding medium to large parts or fixtures, the HRT Series of T-slotted rotary tables is the answer. These rugged, heavy-duty tables can be mounted vertically or horizontally for added versatility. Chucks and fixtures can easily be bolted to the table using the six precision T-slots, and large through-holes allow for bar feeding and special fixture-locating requirements.
Haas HRT310 CNC Rotary Table (2004)
Platter S.A.E METRIC
Platter Diameter 12.20 in 310 mm
Max Weight on Platter (w/support) 435 lb 197.3 kg
Max Weight on Platter (unsupported) 218 lb 98.7 kg
Number of Std T-Slots 6 @ 60° 6 @ 60°
Spindle S.A.E METRIC
Max Speed 75 °/sec 75 °/sec
Torque (Continuous) 300 ft-lbf 407 Nm
Runout Max 0.0010 in 0.025 mm
Center Height 9.000 in 228.60 mm
Backlash 30 arc-sec 30 arc-sec
Brake Torque @ 100 psi/6.9 bar 500 ft-lbf 678 Nm
Gear Ratio 72:1 72:1
Timing 2:1 2:1
Indexing S.A.E METRIC
Accuracy (±) ± 15 arc-sec ± 15 arc-sec
Repeatability 10 arc-sec 10 arc-sec
Resolution 0.001 ° 0.001 °
Worm Gear Dia 9.4 in 235 mm
Max Rotation/Step (with rotary control) 999.999 ° 999.999 °
General S.A.E METRIC
Power Requirement 115 VAC ±10% @ 15 A 115 VAC ±10% @ 15 A
Operating Temp (max ambient) 100 °F 38 °C
Air Requirements S.A.E METRIC
Air Pressure Max 150 psi 10.3 bar
Dimensions - Shipping S.A.E METRIC
Export Crate 32.0 in x 17.0 in x 27.0 in 82 cm x 42 cm x 69 cm
Weight 510 lb 232.0 kg
