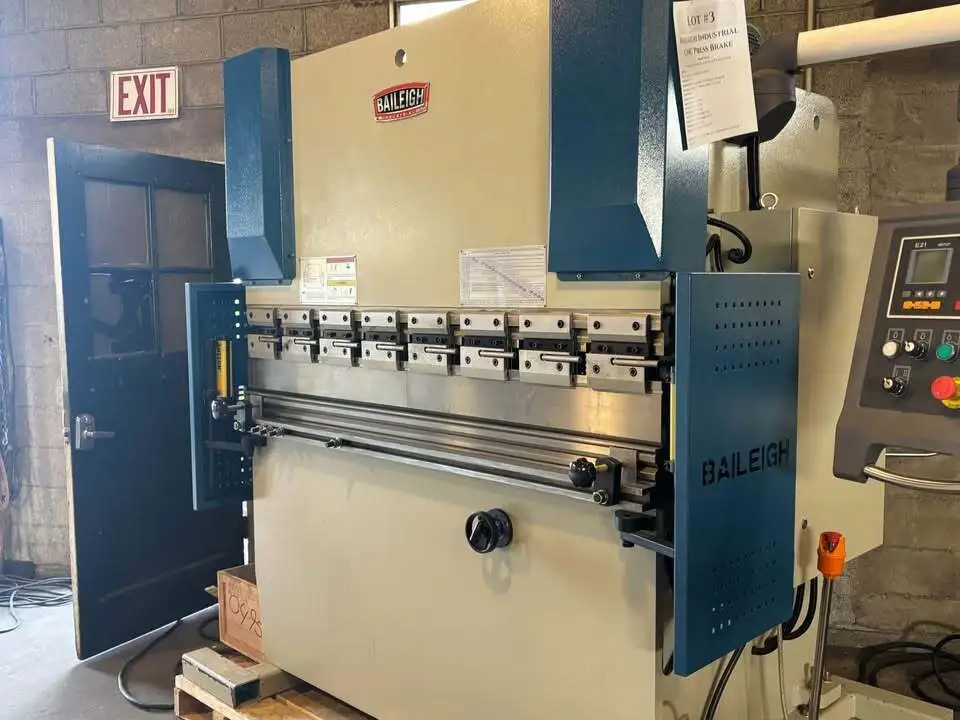

Baileigh BP-3305CNC 33 Ton Hydraulic Press Brake (2022)

Baileigh BP-3305CNC 33 Ton Hydraulic Press Brake (2022)

Pressure: 33 Tons
Power requirements: 220V, 3-phase
Main motor: 7.5 hp
Back gauge motor: 1/2 hp
Controller: 40 programs with 25 steps per program
Table size: 63 x 7 inches
Back gauge depth: 21.5 inches
Throat depth: 8 inches
Stroke distance: 3.15 inches
Approach speed: 3.5 inch/sec
Return speed: 3.3 inch/sec
Bending speed: .394 inch/sec
Distance between housings: 51.25 inches
Distance from table to ram: 13.325 inches
Tooling stye: European
Included punch: 78° Gooseneck (split into two 31.5 inch sections)
Included vee die: 7 way V-die (.3125, .39, .47, .625, .94, 1.25, and 2 inch)
Shipping weight: 5050 lbs
Shipping dimensions: 91 x 56 x 87 inches
