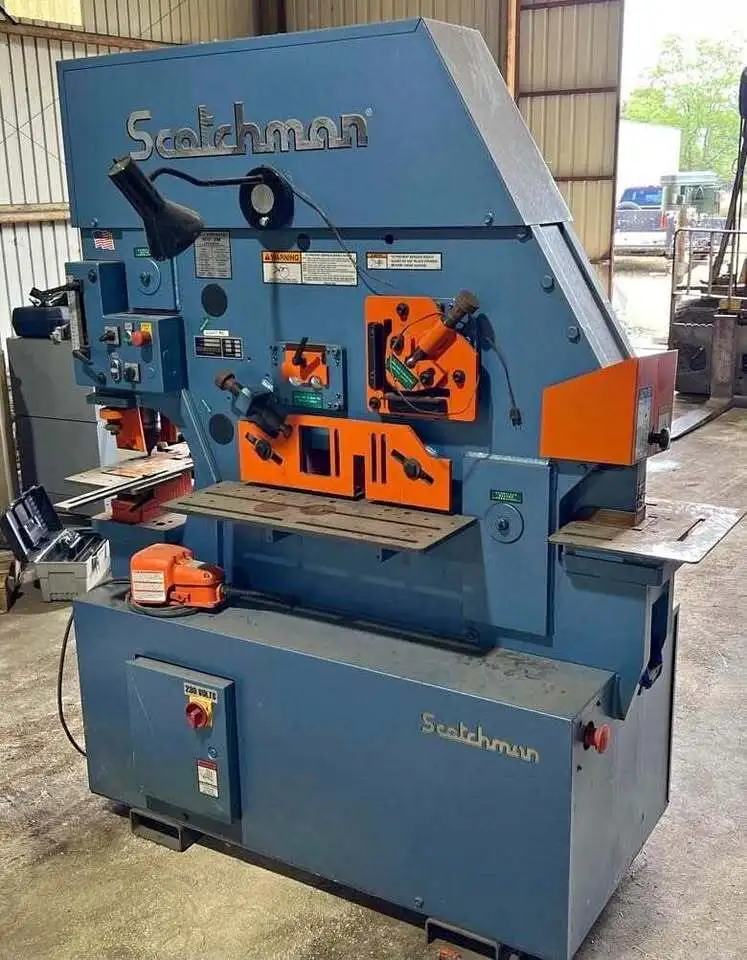

Scotchman FI 8510-20M Hydraulic Ironworker (2012)
Have one to sell?
ConditionUsed
1 available
Have you ever heard the phrase “Sleeping Giant”? Scotchman Industries’ “Sleeping Giant” is our fully-integrated, FI 8510-20M hydraulic ironworker. Pound for pound, ton for ton, and dollar for dollar, there is nothing on the market that compares to this ironworker machine.
This machine has five built-in work stations that include: 85 tons of punching capacity (1-1/16” in 1” 65,000 tensile mild steel), 20” wide flat bar shear (capable of shearing 1” x 12” and 3/4” x 20”), 6” x 6” x 1/2” crop off angle shear, round and square, solid rod shear and a 3” x 5” x 1/2” rectangle notcher.
Rated on:
65,000 PSI Tensile A 36 Mild Steel
Punching Capacity:
85 ton
1-1/16" in 1"
Special Tooling:
4" Max. Dia.
Throat Depth:
10"
Flat Bar Shear:
20" Length
1" x 12"
3/4" x 20"
Angle Shear 90°:
6" x 6" x 1/2"
45° with Bar Shear:
4" x 4" x 1/2"
Brake 12":
85 ton
Brake 24":
85 ton
Open End Brake:
Max. 1/4" x 5"
Flat or Angle Iron
Pipe Notcher:
3/4"
Schedule 40 I.D.:
1"
1-1/4"
1-1/2"
2"
90° V-Notcher:
6" x 6" x 5/16"
Rectangle Notcher:
3" x 5" x 1/2"
90° V. Notch:
3" x 3" x 1/2"
Channel Shear:
2" to 6" Adj.
Strut Shear:
Samples Required
Rod Shear
Round Rod:
1-1/2"
Square Rod:
1-1/4"
Square Tube Shear:
1/2" to 2"
12 ga.
Picket Tool:
1/2"
3/4"
1"
16 gauge
Offset Die Holder:
Max. 40 ton
Strokes Per Minute in Light Material:
1/4" Stroke [Punch Station] 35 spm
Strokes Per Minute in Heavy Material:
3/4" Stroke [Punch Station] 14 spm
Hydraulics:
2,600 psi
Motors Standard:
5 hp 3 ph
230/460
208/380/575
Dimensions:
L-67"
W-30"
H-77"
Shipping Weight:
4,554 lbs.
