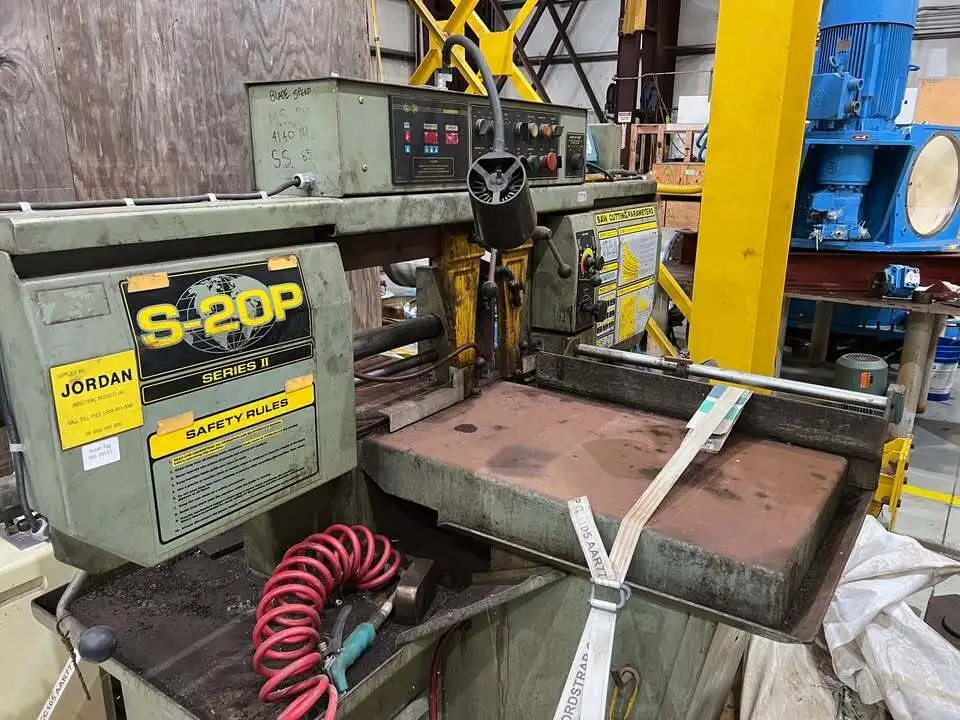

Hyd-Mech S-20P Series II Horizontal Band Saw

HYD-MECH 13” Round Capacity Model SP20P Semi-Automatic Horizontal Band Saw

Capacity:
90°
45°
30°

Rectangular (H x W):
13″ x 18″
13″ x 10 3/4″
13″ x 7 3/4″

Round:
13″
12″
8 1/2″

Blade Size:
1” x 14’ 10”

Blade Drive:
3 HP VFD

Machine Voltage:
480 v (all other voltages require optional transformer)

Blade Speed:
45-330 SFM

Coolant Tank Capacity:
6 Gallons

Work Load:
5,000 lbs.

Machine Weight:
2,500 lbs.

Table Height:
31”

Dimensions (W x L x H):
92” x 75” x 52”

STANDARD FEATURES:
-Easy swing, heavy duty cast iron saw
head that can swing up to 60 degrees
in one direction

-Full capacity, full stroking hydraulic vise
-3 HP VFD. True direct blade drive – no
belts/pulleys

-On-demand hydraulics save energy
and money

-36” material in-feed roller table and 19”
out feed table

-Cast iron band wheels

-Swing away semi-automatic operator
control panel

-Replaceable blade brush

-Robust steel base

-Easy to read angle scale with angle
locking mechanism

-Cast iron guide arms. Idler side guide
arm is adjustable and supported by
linear rail

-Gravity fed sawing head with infinite
down feed adjustment

-Mechanical band tensioning with digital
readout

-Pre-set, replaceable carbide guide
inserts

-Safety door interlocks

-Flood coolant with wash down hose
-Laser light

-Work light

-Variable vise pressure
