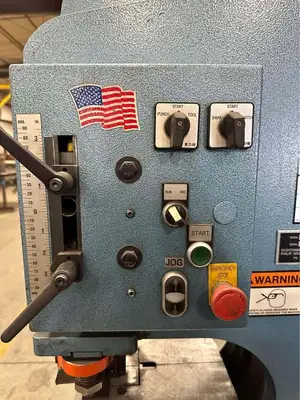

Scotchman DO 120/200-24M Hydraulic Ironworker (2013)

Scotchman DO 120/200-24M Hydraulic Ironworker (2013)

Punching Capacity 120 ton
1-1/2" in 1" 108 mt
38 in 25 mm
Special Tooling 4" Max. Dia. 102 mm Max. Dia.
Throat Depth 12" 305 mm
Flat Bar Shear
(Sabre Blade - Standard) 24" Length
1" x 12"
3/4" x 20"
1/2" x 24" 610 mm
25 x 305 mm
19 x 508 mm
12 x 610 mm
Angle Shear 90 degree 6" x 6" x 1/2" 152 x 152 x 12 mm
Angle Shear 45 degree
w/Tool
w/Bar Shear
3" x 3" x 3/8"
4" x 4" x 1/2"
76 x 76 x 10 mm
102 x 102 x 12 mm
Brake 12" 75 ton 55 mt
Brake 24" 55 ton 40 mt
Open End Brake Max. 1/4" x 5"
[Flat or Angle Iron] 6 x 127 mm

Pipe Notcher
Schedule 40 3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher 3" x 5-3/4" x 1/2" 76 x 146 x 12 mm
90 degree V-Notcher 6" x 6" x 5/16"
3" x 3" x 1/2" 152 x 152 x 8 mm
76 x 76 x 12 mm
Notching in Leg of Channel 6" to 10" 152 to 254 mm
Channel Shear 2" to 6" adj. 51 to 152 mm adj.
Unistrut Shear Samples Required
Rod Shear
Round (max.)
Square (max.)
9 Cavity - 1/4" to 1-1/4"
1 Cavity - 1/4" to 1"
6 to 32 mm
6 to 25 mm
Square Tube Shear 1/2" to 2"
12 gauge 12 to 51 mm
0.105" / 2.7 mm
Picket Tool 1/2", 3/4", 1"
16 gauge 12, 19, & 25 mm
0.06" / 1.5 mm
Weld Coupon Bender (max.) 2" wide x 3/8" 51 x 10 mm
Offset Die Holder Max. 40 ton Max. 36 mt
Strokes per Minute in Light Material 39 spm [Punch Station] 1/4" Stroke
Strokes per Minute in Heavy Material 15 spm [Punch Station] 3/4" Stroke
Hydraulics 3,500/3,500 psi 241/241 bar
Motor Standard 10 hp
208/230/460, 380/575v; 3 ph 7.46 kW

Motor Optional 10 hp
220v, 1 ph 7.46 kW

Dimensions L: 83"
W: 38-1/2"
H: 76-1/2" L: 211 cm
W: 98 cm
H: 194.5 cm
Shipping Weight (may vary) 6,204 lbs. 2,814 kg
