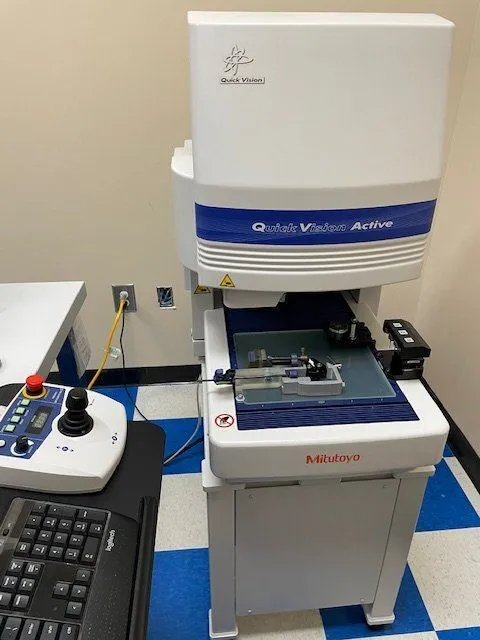

Mitutoyo QVT1-L202Z1L-D Measuring Machine

Mitutoyo QVT1-L202Z1L-D Measuring Machine

Measuring Range X-Axis: 0-9.84in 0-250mm
Measuring Range Y-Axis: 0-7.87in 0-200mm
Measuring Range Z-Axis: 0-5.91in 0-150mm
Resolution 0.1 µm
Measuring accuracy:
E1(X,Y) = (2+3L/1000)
E1(Z) = (3+5L/1000)
E2(X,Y) = (2.5+4L/1000)
Max stage loading: 22lbs 10kg
Mass: 265lbs 120kg
Illuminations: (White LED)
Contour / Coaxial / 4-quadrant ring light
Magnification change system: Zoom optical system with 8 positions
(Standard 1.5X magnification lens)
Sensor type: High-resolution CMOS color camera
Optional objective lenrs: 1X and 2X magnification
Factory option: Series 364 (TP) Touch-Probe option
