Okamoto ACC12.24DX 3 Axis Hydraulic Surface Grinder (2012)
Have one to sell?
ConditionUsed
1 available

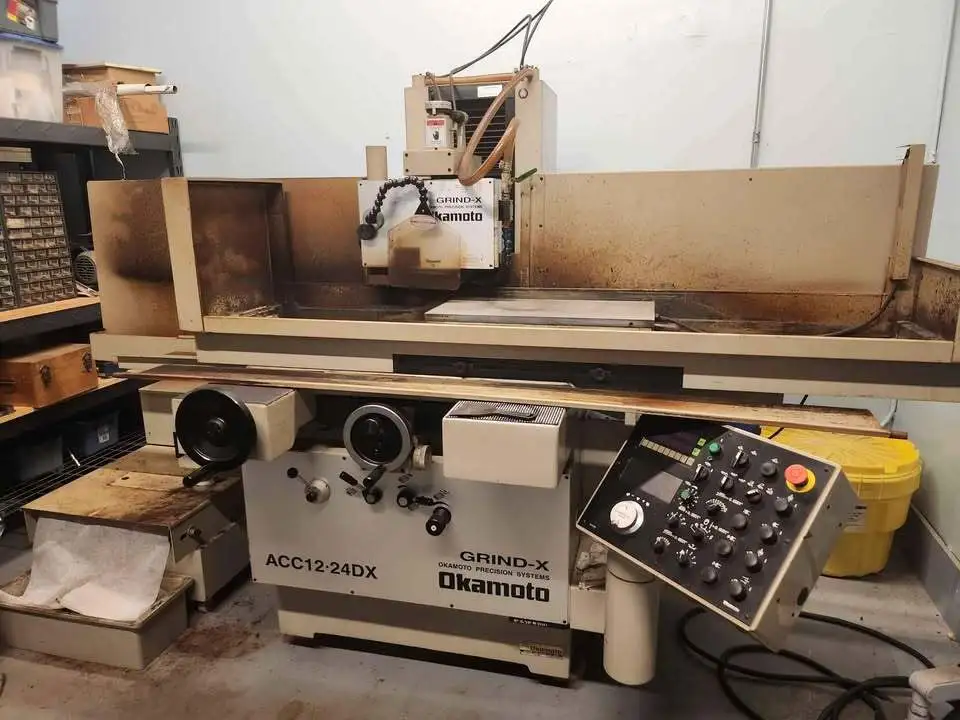

Okamoto ACC12.24DX Hydraulic Surface Grinder (2012)
Table Working Surface: 12" x 24"
Max Chuck Size: 12" X 24"
Max Table Movement (Manual): 29.5"
Max Distance Spindle / Wheel to Table: 13.6"
Max Table Load (Including Chuck): 925 Lbs.
Wheel Speed: 1,800 RPM
Auto Longitudinal Feed Rate: 3 - 82 FPM
Max Wheel Size : 14" Diameter (12" x 1.5" x 1" STD)
Hydraulic Motor: .010 - 40 Feet Per Minute
Auto Wheelhead Downfeed Increments: .0005" - .0015"
Spindle Drive: 5 HP
Rapid Wheelhead Feed Rate: 40 IPM
