Baileigh R-H170 Heavy Duty Angle Bending Roll (2015)

Baileigh R-H170 Heavy Duty Angle Bending Roll (2015)

Item Number R-H170
Roll Adjustment Hydraulic
Pipe Capacity Size: 6" (sch. 40) / Min. Dia.: 98"
Square Tube Capacity Size: 4.7" (.315")
Solid Round Capacity Size: 4" / Min. Dia. 40"
Flat Bar Easy Way Size: 9.75" (1.5") / Min. Dia. 40"
Flat Bar Hard Way Size: 5.875" (1.375")/ Min. Dia.: 40"
Lower Shaft Dia. 6.69"
Upper Shaft Dia. 7.48"
Control DRO
Motor 5.3 hp
Pinch Double
Power 220V 3- phase
Shipping Weight 21500lbs
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions L x W x H 94.5" x 146" x 69"

This fully-horizontal hydraulic roll bender draws on the strength of a heavy steel frame to tackle extended production runs of difficult segments in large ODs.

Requires 220-volt 3-phase power.
3 variable-speed, driven rolls let you choose the right settings for a given part and material.
Digital readout takes the hassle out of making repeatable parts.

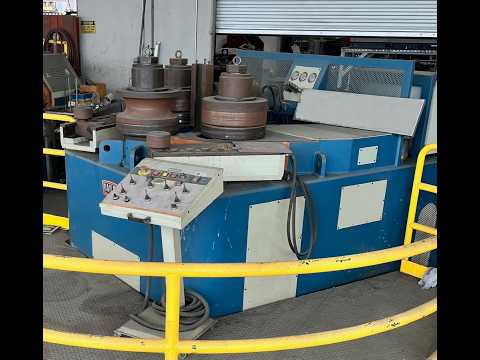

Movable operator podium allows you to control every function of the machine at once.
Baileigh covers this angle roller with a 1-year parts warranty as well as lifetime technical support by phone.

Use this roll bender machine for: Structural applications, playgrounds, shipyard building, or any high-production, low-waste project.
