| size | 6" x 6" x 5/8" | 6" x 6" x 5/8" |
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Angle (T) | 0.625" | 15.875 mm |
| Hyd/Mech | HYD | HYD |
| Power | 15 hp | 11.2 kW |
| Dimensions | 77" X 94" X 66" | 77" X 94" X 66" |
| Weight | 18,000 LBS | 18,000 LBS |

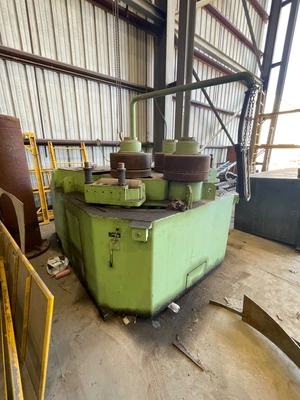

Roundo R-6-S 6" x 6" x 5/8" Angle Bending Roll
Angle:
Leg Out: 6" X 6" X 5/8"
Leg In: 5" X 5" X 3/4"
T - Leg:
Leg Out: WT6
Leg In: WT5
Leg Down: WT6
Flat Bar:
Hard Way: 6" X 1-1/2"
Easy Way: 10" X 2"
Square Bar: 3-1/2"
Round Bar: 4-3/8"
Round Pipe Sch. 40: 6"
Square Tube: 5" X 5/16" Wall
Beam on Flange: W12 X 35 / W8 X 31
Channel:
Flange Out: C12 X 30
Flange In: C12 X 30
Channel on Web: C7 X 12.25
Rolling Speed: 23 FPM Max (Variable)
Roll Diameter: 18"
Shaft Diameter: 7.1" / 6.3"
Main Motor: 20 HP
Voltage: 220 / 440V / 3 Phase
Dimensions: 77" X 94" X 66"
Weight: 18,000 LBS
