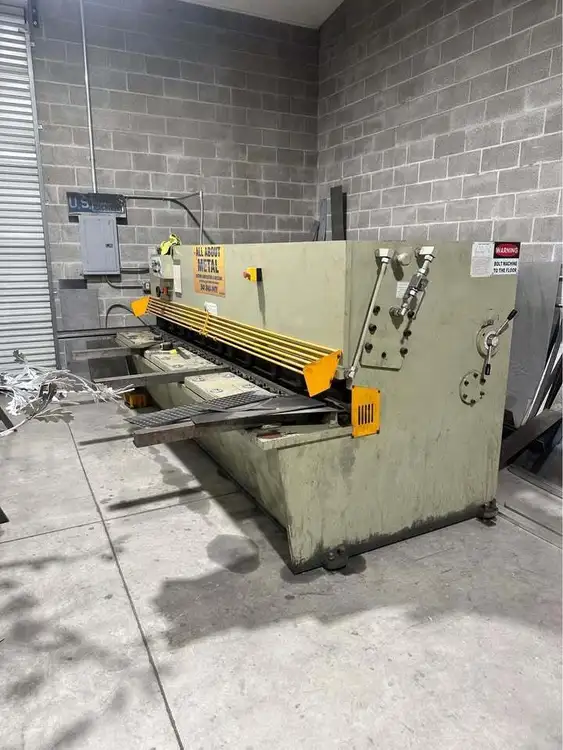

US Industrial Model 1025 1/4" x 10' Hydraulic Power Shear (2014)

U.S. Industrial US1025 10′ x 1/4″ Hydraulic Shear (2014)

Inventory # 8047

Model: US1025

Specifications:

Sheet Size: 126″

Shearing Capacity: 1/4″ Mild Steel @ 65,000 PSI

Shear Angle: 1° 30′

No Load Strokes: 14

Throat Depth: 4.7″

Adjustment Range of Back Gauge: 3/4″ – 36″

Hydraulic Oil Capacity: 71 Gallons

Motor: 15 HP / 230v, 460v / 3ph

Standard Features:

Squaring arm, 39 1/2″ from blade to end

High carbon, high chrome shear blades

Ball transfers on each table segment

Manual quick change blade gap adjustment

Stroke counter

Front-controlled power back gauge

Blade guard, micro switch protected

Hydraulic, electrical overload protection

Automatic swing-up on back gauge

Three bolts on table segments

Hold-downs faced with anti-mar neoprene

Swing beam design

Pressure sensing hold downs

Electric stroke adjustment

Operator control console

Shadow lighting

Low noise gear pump

Support arms

Material drop support chute

Mechanical Specifications:

Dimensions: 157″ x 63″ x 63″ H

Weight: approx. 15,550 lbs.
