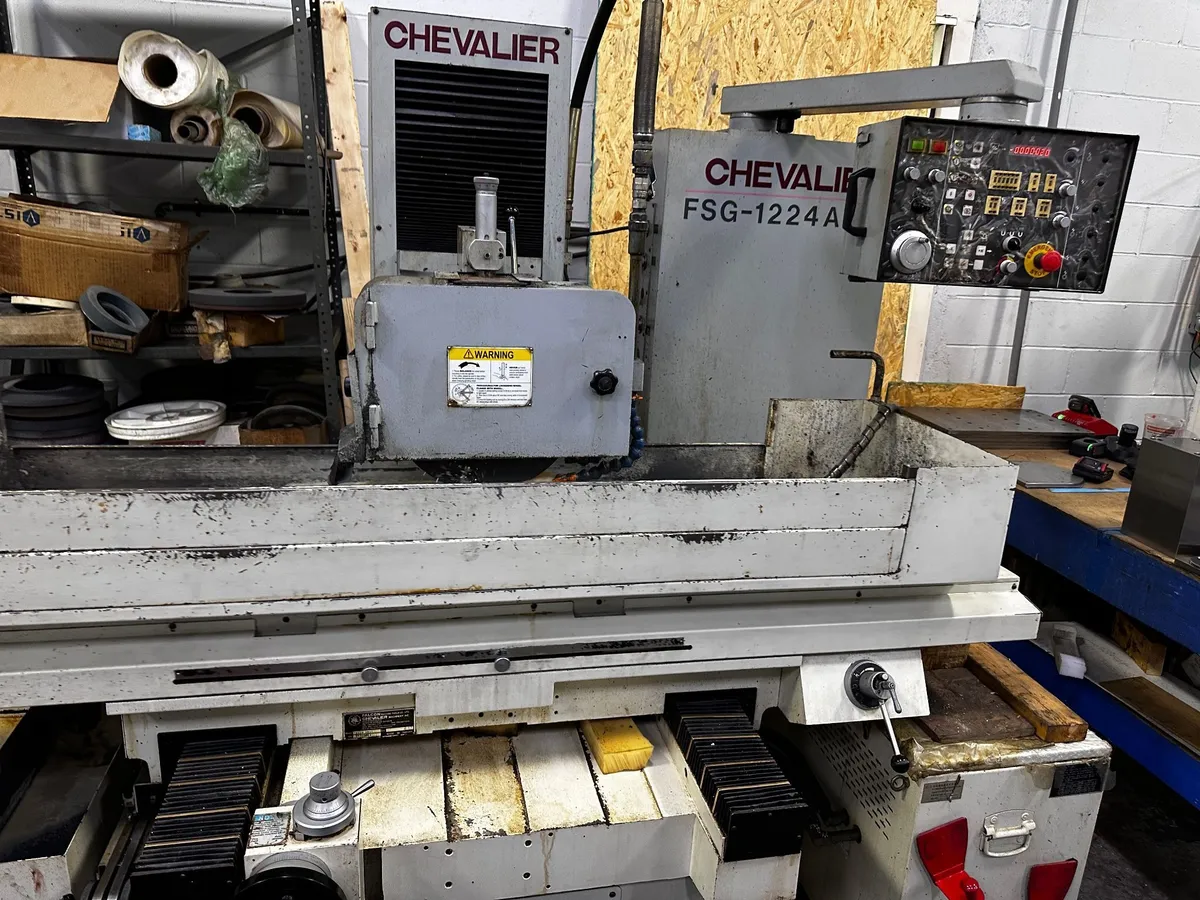

Chevalier FSG-1224AD-II 3 Axis Hydraulic Surface Grinder

Chevalier FSG-1224AD-II 3 Axis Hydraulic Surface Grinder

Model: FSG-122ADII
Grinding Capacity: 12" X 24"
Spindle To Table (Maximum): 19-3/4"
Longitudinal Table Travel :25-5/8"
Cross Table Travel :12"
Table Speed (Variable) :16 To 82 Fpm
Spindle Speed : 3450 Rpm
Grinding Wheel Size : 14" X 2" X 5"
Electro-Magnetic Chuck Size : 11-3/4" X 23-7/8" X 2-3/4"
Incremental Downfeed :. 0.00005" To 0.002"
Automatic Crossfeed:. 0.005 IPR
Power Elevation ;12 FPM
Coolant W/Paper Filtration :Yes
Electro-Magnetic Chuck W/Controls : Yes
Spindle Motor : 5 Horsepower
Hydraulic Motor: 2 Horsepower
