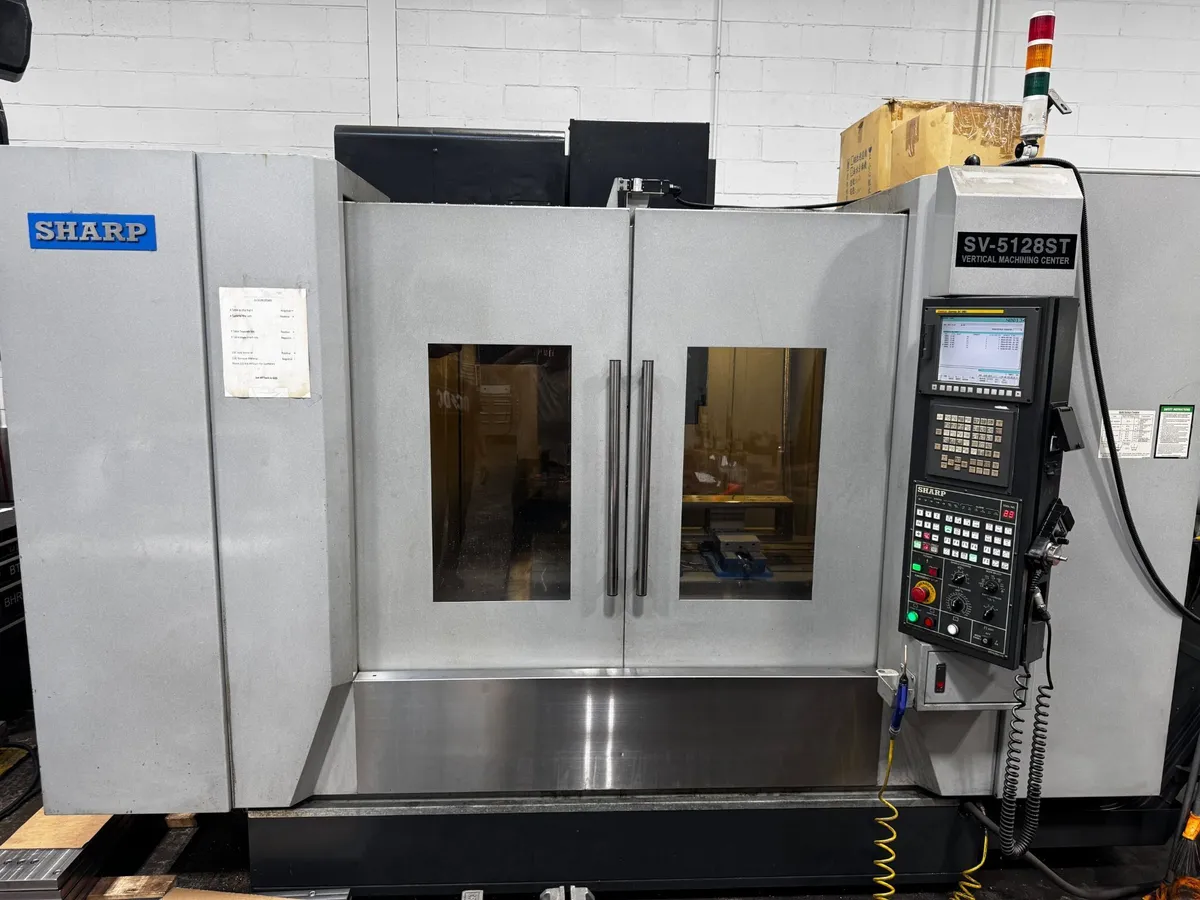

Sharp SV-5128ST Vertical Machining Center (2014)

Sharp SV-5128ST Vertical Machining Center (2012)

WORK CAPACITY
X-axis Travel - 51.18" (1300 mm)
Y-axis Travel - 27.56" (700 mm)
Z-axis Travel - 27.95" (710 mm)
Spindle Nose to Table - 5.1"~33" (130 mm~840 mm)
Spindle Center to Column - 28.7" (730 mm)
WORKTABLE
Table Area - 59" x 25.6" (1500 mm x 650 mm)
Floor to Table - 33.5" (850 mm)
Maximum Workpiece Weight - 2200 lbs (1000 kg)
T-Slot (Number x Width x Pitch) - 5 x 0.7 x 3.9" (5 x 18 x 100 mm)
SPINDLE
Spindle Taper - CAT-40
Spindle Speed - 10,000 rpm
Spindle Motor Continuous / 30 Minutes - 20 HP / 25 HP (15 kW / 18.5 kW)
Spindle Torque 30 Minutes - 86 ft.-lb at 1500 rpm (117 Nm at 1500 rpm)
Transmission - Belt
ATC (Automatic Tool Changer)
ATC Type - Side Mount
Tool Capacity - 24 Tools
Maximum Tool Diameter - 2.99" (76 mm)
Without Adjacent Tool - 5.9" (150 mm)
Maximum Tool Length - 11.8" (300 mm)
Maximum Tool Weight - 15.4 lbs (7 kg)
Tool Change Time (Tool to Tool) - 4.6 Seconds
Tool Change Time (Chip to Chip) - 6 Seconds
Method of Tool Selection - Random
MOTION
Rapid Traverse X-axis - 945 inch/min (24,000 mm/min)
Rapid Traverse Y-axis - 945 inch/min (24,000 mm/min)
Rapid Traverse Z-axis - 590 inch/min (15,000 mm/min)
Cutting Feed Rate - 0.04~393.7 inch/min (1~10,000 mm/min)
Transmission - Direct Drive
Ball Screw Diameter / Pitch (X / Y / Z) - 1.57" / 0.4" (40 mm / 10 mm)
Feed Motor Fanuc X-axis - 8.5 ft.-lb (12 Nm)
Feed Motor Fanuc Y-axis - 8.5 ft.-lb (12 Nm)
Feed Motor Fanuc Z-axis - 16 ft.-lb (22 Nm)
Positioning Accuracy* - 0.0002" (0.005 mm)
Repeatability Accuracy* - 0.0001" (0.003 mm)
COOLANT SYSTEM
Coolant Tank Capacity - 132 gal (500 L)
Number of Coolant Nozzles - 3 Nozzles
MACHINE SIZE
Floor Space (Without Chip Conveyor) - 126" x 111" (3200 mm x 2825 mm)
Height - 122" (3100 mm)
Weight - 17,600 lbs (8000 kg)
Operator Door Opening - 47.64" (1210 mm)
POWER REQUIREMENTS
Electrical - 220V / 60 Hz / 3 Phase / 30 kVA
Air - 6 CFM at 88 psi
