| size | 8" chuck | 8" chuck |
| Swing | 20.8" | 528.32 mm |
| Machining Length | 20.47" | 519.94 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 14.5" | 368.3 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Okuma Osp E100L) | CNC (Okuma Osp E100L) |

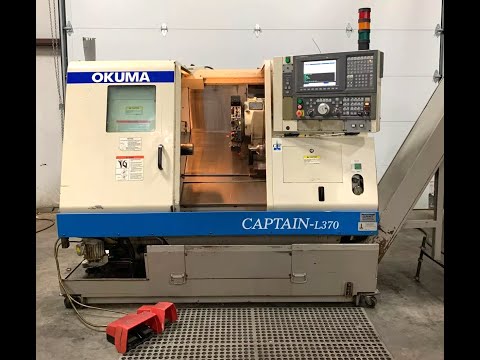

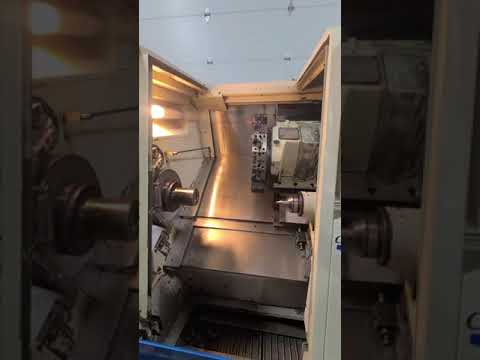

Okuma Captain L370 2 Axis CNC Lathe (2001)
Max Turning Diameter: 14.56
Max Turning Length: 20.47
Max Bar Capacity: 2.05
Swing Over Slide: 15.78
Swing Over Bed: 21.65
Distance Between Centers: 22.29
Travel:
X Axis Travel: 10.23
Z Axis Travel: 20.47
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 984 IPM
Spindle Nose: A2-6
Spindle Bore: 2.44
Spindle Speed: 4500 RPM
Spindle Motor: 20 HP
Overall Dimensions: 110 x 68 x 80 High
Overall Dimensions: 140 x 68 x 80 High with Chip Conveyor
Weight : 9000 lbs Approx.
OSP-E100L CNC Control
12-Station Turret

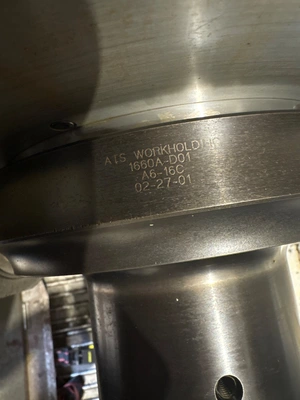

Collet Chuck
Touch Setter
Hydraulic Tailstock with Power Quill
Chip Pan and Chip Conveyor
Coolant System
Automatic Lubrication system
Foot Operated Control for Chuck and Tailstock
This equipment has been sold. Similar equipment available now is shown below.
