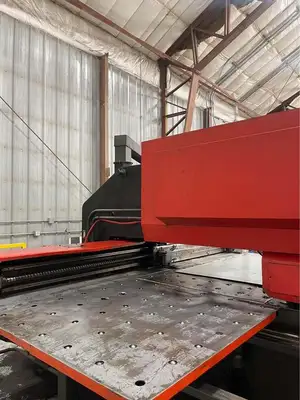

Amada Pega 357 30 Ton Turret Punch (1991)

1991 Amada Pega 357 30 Ton Turret Punch

Capacity: 30 Ton
Maximum Traverse: 50” X 72”
Maximum Sheet Size (With Repositioning): 50” X 144”
Maximum Punching Capacity (Mild Steel) : ¼”
Maximum Hits Per Minute : 350
Maximum Sheet Weight : 220 LBS
Maximum Positioning Speed : 2,795″ PER MINUTE
Total Tool Stations In Turret : 58
Turret Configuration: H-Type Thick Turret
36 @ 1/2″ DIA
12 @ 1-1/4″ DIA.
4 @ 2″ DIA.
2 @ 3-1/2″ DIA.
2 @ 4-1/2′ DIA.
2 @ AUTO ÍNDEX (1-1/4″ DIA.)
Auto Index Configuration
Angular Increment : 0.01 Degree
Maximum Nibbling Angle : 8 Degree
Indexing Station Drive : Bi-Directional Rotation
Index Drive Type: Ac Servo Drive
Index RPM: 60 RPM
Turret Index Speed : 30 RPM
Air Requirement : 80 PSI
Main Motor Horsepower : 5.5 KW
