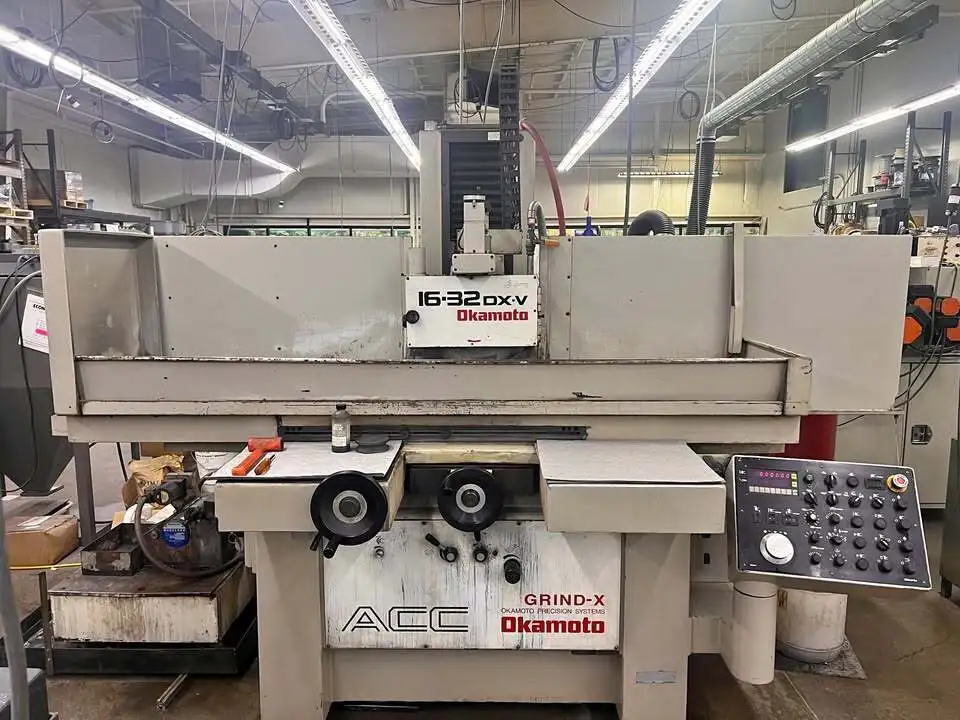

Okamoto ACC 16-32 DX-V Hydraulic Surface Grinder
Have one to sell?
ConditionUsed
1 available
Okamoto ACC 16-32 DX-V 3 Axis Hydraulic Surface Grinder
Max. Grinding (WxL) - 16" x 32"
Max. Table Travel (WxL) - 18" x 38"
Max. Distance Under 12" Wheel - 21.5"
Standard Chuck Size - 16" x 32" x 3.5"
Table Load Capacity Incl. Chuck - 1,540 lbs
Longitudinal Feed Rate - 1-82 ft/min
Hand Feed - 1.85"
Automatic Rough Feed - 0-0.0015" (11stages)
Automatic Fine Feed - 0-0.005" (7 Stages)
Number of Spark Outs - 0.5
Vertical Rapid Feed - 23.6" in/min
Wheel Size - 12" x1.5" x 5"
Spindle Speed - 1,800 rpm
Grinding Wheel Speed - 5 hp
Hydraulic Pump - 2 hp
- Automatic Over-The-Wheel Dresser
- Built-In Chuck Controller
- Vertical Manual Pulse Generator
- Splash Cover w/Coolant Nozzle
- Table Parks at Right Side For Safety
- Table Top Diamond Dressing Tool & Holder
- Magnetic Separator For Coolant System
- Trans Verse Pole Chuck .748 Pole Divison
- Rough & Fine Grind Cycle
- Auto Traverse & Plunge Grinding Mode
- Diagnostic System
- Leveling Bolts & Plates
- Coolant System
