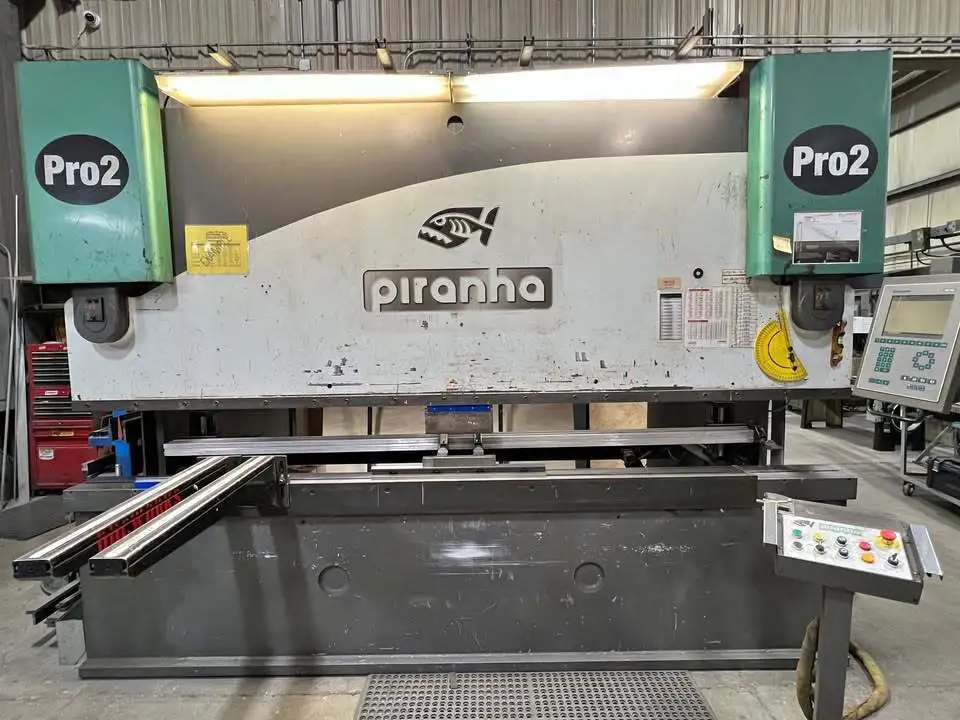

Piranha Pro 2 200-12 Hydraulic Press Brake (2007)

(2007) Piranha Pro 2 200-12 CNC Hydraulic Press Brake

Bending Force - 200 Tons
Bed - 12'
Ram repeatability and parallelism - 0.0004”
Between housings - 124"
Ram pre-machined to use American tooling.... Included
Precision ground die rail with hold down bolts. Included
Manual Tool Clamps - Included
Shut Height - 6"
Open Height (without die rail) - 14"
Throat Depth - 10"
Stroke - 8"
Work Height - 38"
Rapid Approach - 210 ipm
Press Speed - 25 ipm
Return Speed - 225 ipm
Delem DA56 Graphical CNC Control
Graphical 2D view of bend sequence and part orientation
Bend sequence control
Product and tooling library (2 Mb)
Dual Palm Button - Included
Motor Rating - 20 H.P.
Electrics 480/3/60
Estimated Weight - 21,500 lbs.
