| size | 26" x 14" x 18" | 26" x 14" x 18" |
| X Travel | 26" | 660.4 mm |
| Y Travel | 14" | 355.6 mm |
| Z Travel | 18" | 457.2 mm |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | 40 | 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 30" | 762 mm |

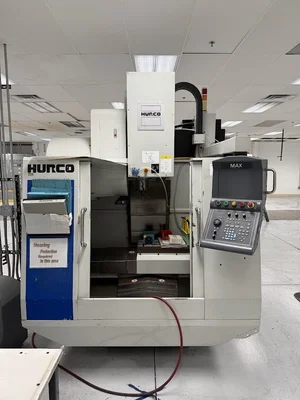

HURCO VM1 VERTICAL MACHINING CENTER
X-AXIS TRAVEL - 26"
Y-AXIS TRAVEL - 14"
Z-AXIS TRAVEL - 18"
SPINDLE SPEED MAXIMUM - 8,000 RPM
RAPID TRAVERSE RATE (X&Y AXIS) - 750 IPM
RAPID TRAVERSE RATE Z-AXIS - 500 IPM
AUTOMATIC TOOL CHANGER CAPACITY - 16
SPINDLE TAPER - BT-40
TABLE SIZE - 14" X 30"
TABLE LOAD CAPACITY - 750 LBS
APPROXIMATE DIMENSIONS - 71" X 63" X 84.5"
APPROXIMATE WEIGHT - 7,000 LBS
