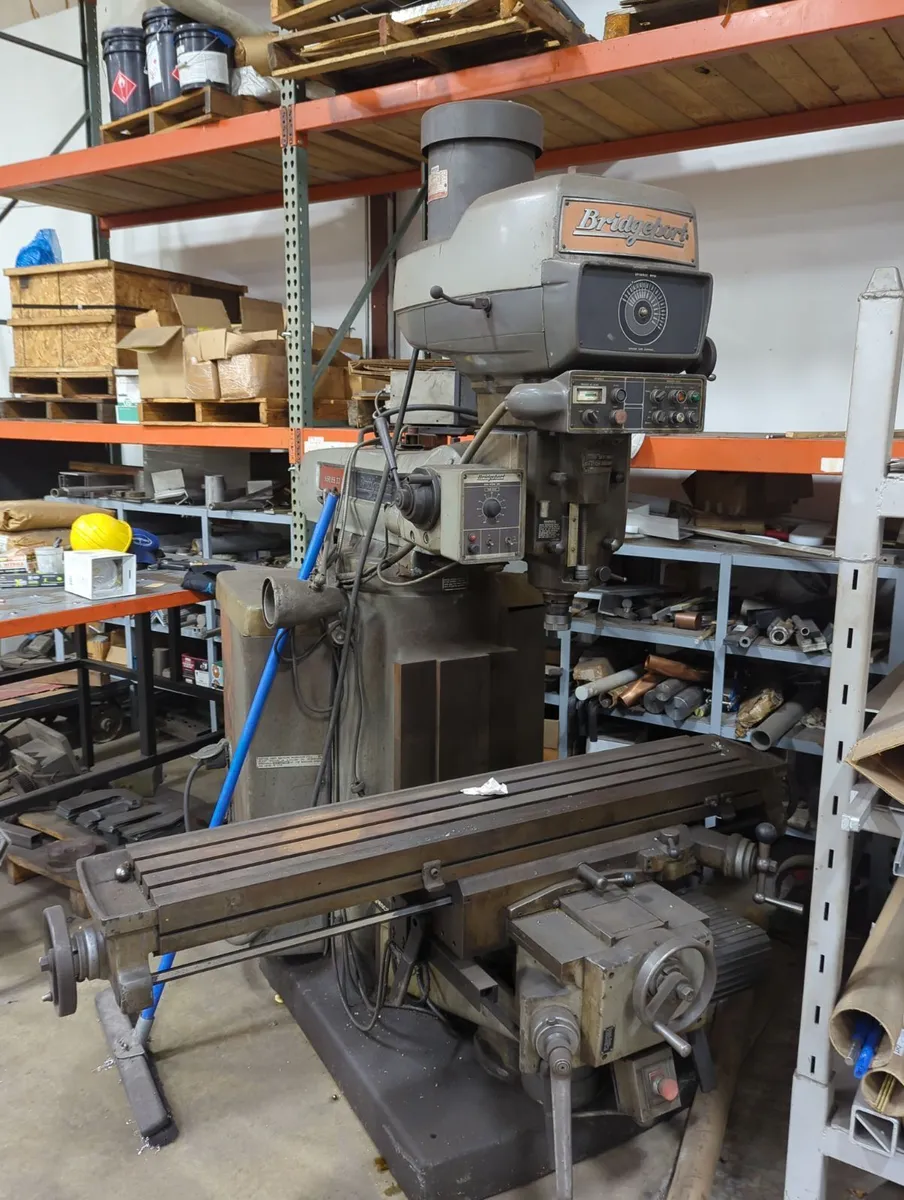

Bridgeport Series II 4 HP Vertical Milling Machine

Bridgeport Model Series II Vertical Milling Machine
Table travel (X-axis): 30"
Saddle travel (Y-axis): 15"
Quill travel: 5"
Knee travel (Z-axis manual): 16"
Ram travel (rack & pinion): 16"
Throat distance (min) (V-Ram): 10.62"
Throat distance (max) (V-Ram): 26.62"
Table to spindle nose gage line: 1"
Max. weight of workpiece: 1000 lbs
Spindle diameter: 2.125"
Quill diameter: 4.25"
Milling feed rate - X & Y axis: 0.375-24 IPM
Milling feed rate - Z axis: 0.1875-12 IPM
Milling rapid feed rate - X & Y axis: 24 IPM
Milling rapid feed rate - Z axis: 12 IPM
Minimum / Maximum Throat Distance: 10 .625″ / 26.625″
Maximum Table Load Capacity: 1,500 Lbs.
Spindle Speeds: Two Ranges w/ Infinitely Variable Speed from 50 to 3,500 RPM
Feed Rates: X , Y- 3/8 to 24 IPM, Z- 3/16 to 12 IPM, Z (Quill) – .6 to 2.5 IPM
Rapid Traverse Rates: X , Y – 24 IPM, Z – 12 IPM
Spindle Taper: Quick Change No. 40 Taper
Head Tilt: Left to Right – 90 Degrees, Front to Back – 30 Degrees
Ram Swivel: 360 Degrees
Ram Travel: 16″
Floor area: 80" x 80"
Height: 93"
Shipping weight: 4750 lbs.
