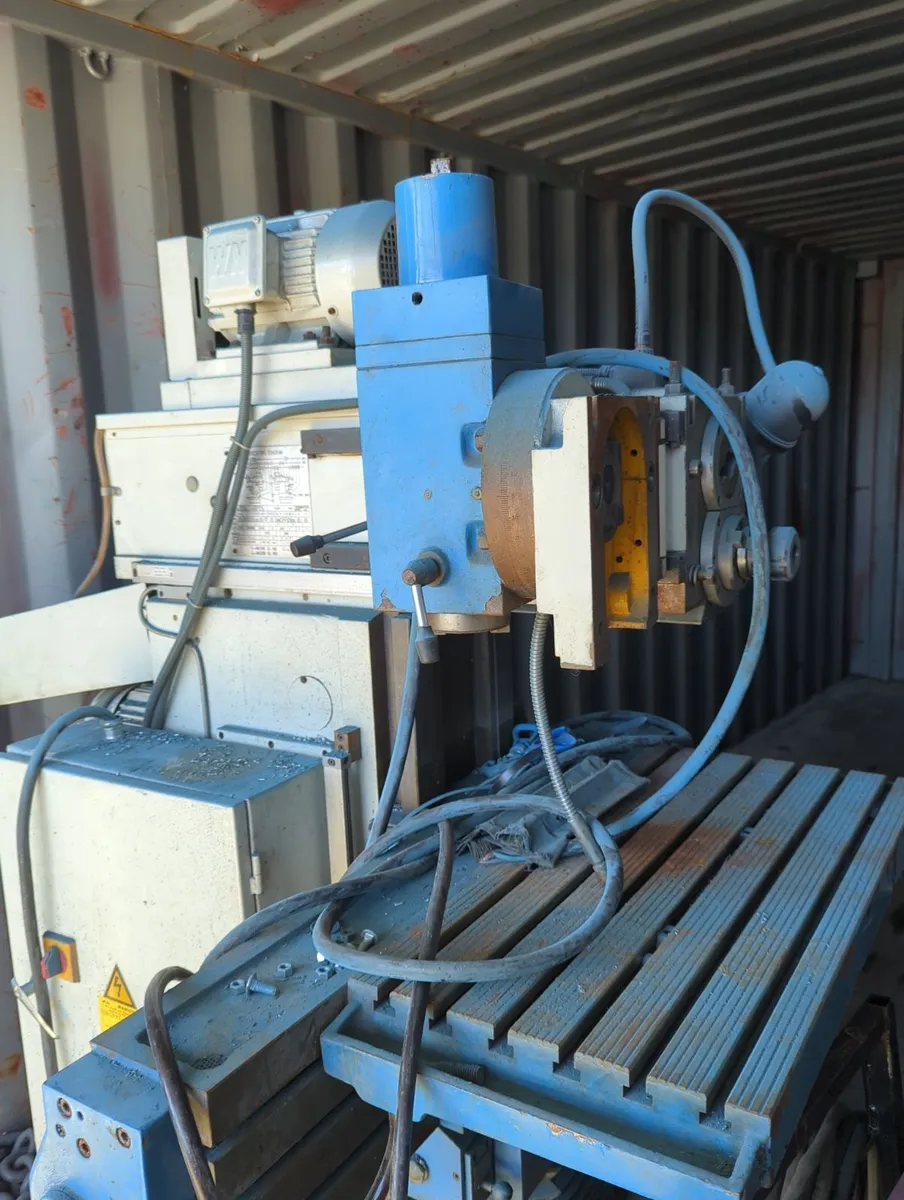

Knuth WF 4.1 Vertical Milling Machine
Have one to sell?
ConditionUsed
1 available
The WF 4.1 Milling Machine features a vertical cutter head with a +/- 90° swivel range. The set degrees are easily read on the integrated degree scale. The large quill features a stroke of 80 mm and is clamped mechanically via lever. For horizontal milling applications, merely remove the vertical cutter head via the swivel arm, shift the upper beam, and mount an outer arbor support. Conversion and setup costs are very low. All 3 axis of this machine are equipped with automatic feeds and rapid feeds. The X and Y axis are engaged and disengaged via one single directional lever. For the cross feed (Y), a separate lever has been provided at the upper beam. In addition, all axis can be manually moved using the integrated scaled hand-wheels.
Specifications - WF 4.1 - Tool Milling Machine
working area
travel X-axis 500 mm
travel Y-axis 400 mm
travel Z-axis 400 mm
table dimensions 800x400 mm
T-slots (number/width/spacing) 6x14x63 mm
vertical table 1060x250 mm
T-slots, vertical table (number x width x spacing) 3x14x63 mm
table load capacity (max.) 200 kg
feed
rapid feed X-axis 1200 mm/min
rapid feed Y-axis 1200 mm/min
rapid feed Z-axis 1200 mm/min
feed speed X-axis 10 - 380 mm/min
feed speed Y-axis 10 - 380 mm/min
feed speed Z-axis 10 - 380 mm/min
vertical milling head
spindle speed (vertical) (18) 40 - 2000 rpm
spindle mount (vertical) SK 40
quill stroke 80 mm
throat 540 mm
spindle nose-to-table surface distance 50 - 450 mm
horizontal milling head
horizontal spindle-to-table surface distance 50 - 450 mm
drive capacity
motor rating main drive 3 kW
motor rating feed 1,1 kW
measures and weights
overall dimensions
