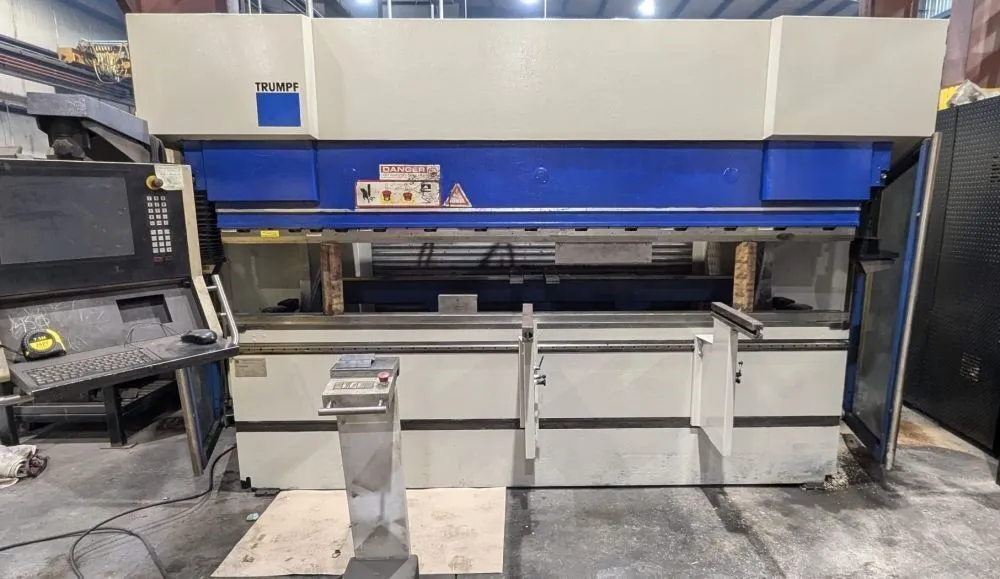

Trumpf V1300 143 Ton x 10' CNC Press Brake (2005)
Have one to sell?
ConditionUsed
1 available
10' x 143 Ton
Trumpf V1300 143 Ton x 10' CNC Press Brake (2005)
Specifications:
Tonnage Capacity: 143 Tons
Overall Length of Bed & Ram: 127.1” (3230mm)
Distance Between Housings: 105.9” (2690mm)
Stroke: 8.46” (215mm)
Throat Depth: . 16.5 (420mm)
Bed Width: 4.72” (120mm)
Distance Floor to Top of Bed: 15.2” (385mm)
Speed – Fast Approach: 220mm / Min.
- Slow Bend: 10mm / Min.
- Fast Return: 220mm / Min.
Motor: 15 kW 3/60
Overall Dimensions (Approx.): 160" x 69" x 94" H
Weight (Est.): 22,440 Lbs.
Trumpf TSC 6000 6-Axis CNC Controller
Sectional Ram Clamps / Lower Die Rail
Rack of Tooling
