| size | 19.7" x 19.7" | 19.7" x 19.7" |
| X | 28" | 711.2 mm |
| Y | 28" | 711.2 mm |
| Z | 28" | 711.2 mm |
| Power | 20.1 hp | 15 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 40 | 40 |
| Taper | 40 | 40 |
| Pallet-W | 19 mm | 0.748" |
| Pallet-L | 19 mm | 0.748" |
| # Axis | 4 | 4 |

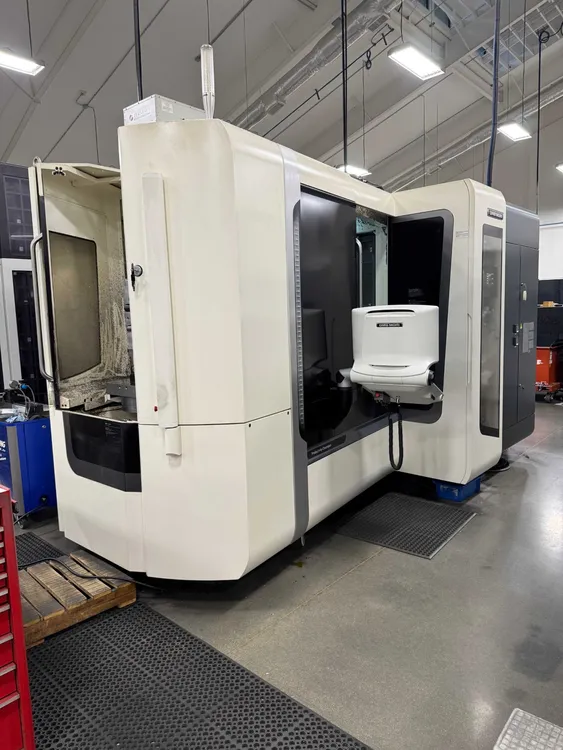

DMG Mori NHX5000 CNC Horizontal Machining Center (2016)
Specifications:
Pallet Size: 19.7" x 19.7"
Travels:
X-Axis: 28.7"
Y-Axis: 28.7"
Z-Axis: 28.7"
Tool Capacity: 60 ATC
Spindle Speed: 15,000 RPM
Spindle Motor: 40 HP
Spindle Taper: CAT 40 Big Plus
Rapid Traverse Rate: 2,362 IPM
M730 CNC CELOS Control with Celos and MAPPS
Full 4th Axis Direct Drive
Chip Conveyor
Probe (Spindle and Touch)
Coolant Thru Spindle 1000 PSI
Coordinate Rotation and Scaling
Chip Blaster
Chiller
(2) Chick 4-Sided Locking Vise Tombstones Included
Run Time:
14,180 Spindle Time
8031 Cut Time
(2) Brand New Pallets available for additional cost
