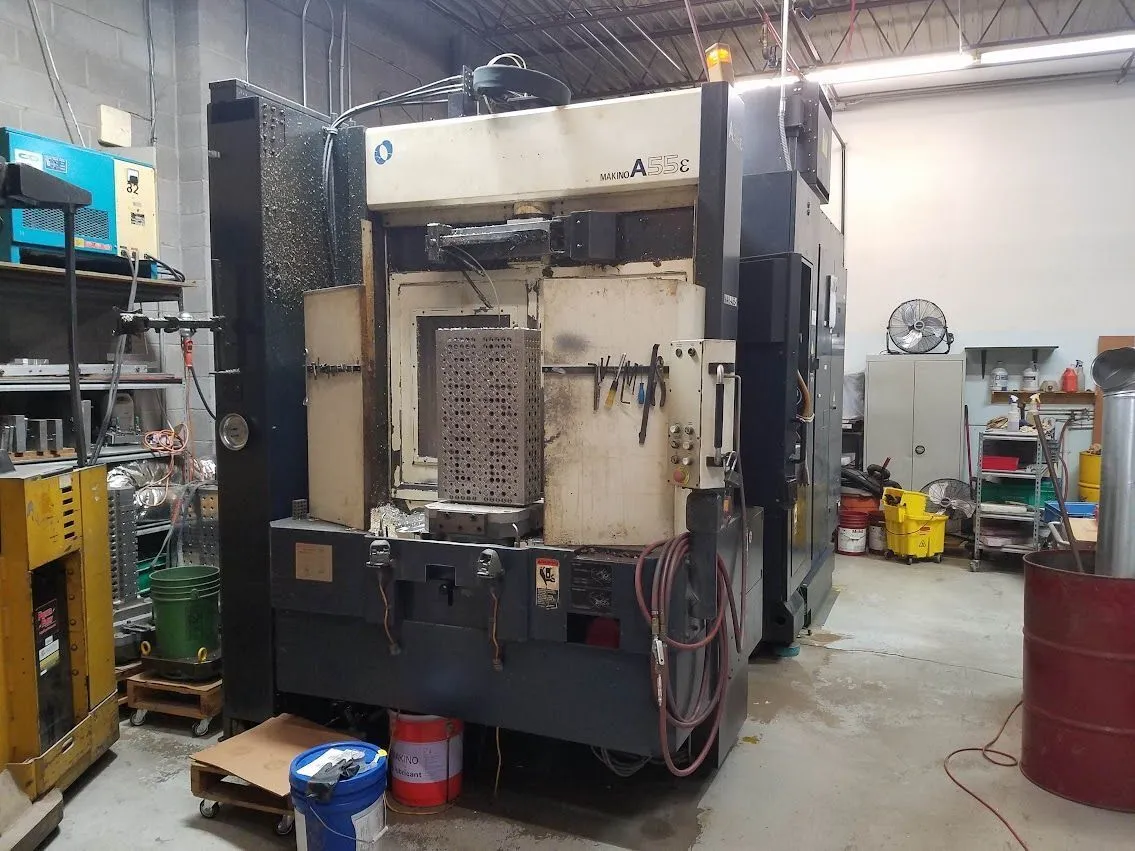

Makino A55-E Horizontal Machining Center (2001)
Pallet Size 15.75"
Travel X-Axis 22.05"
Travel Y-Axis 22.05"
Travel Z-Axis 23.6"
Pallet Index .001 Degree
Spindle Speed 50-14,000 RPM
Spindle Taper Cat 40
Spindle Center to Table Top 3.1" - 25.2"
Spindle Nose to Table Center 2.8" - 26.4"
Spindle Acceleration 2 Seconds
Maximum Workpiece Size 24.8" dia. x 39.4"H
Spindle Torque 123 ft. lbs
Tools 90
Main Motor 25 HP AC
Number of Pallets 2
Rapid Traverse Rates X and Y 3700 IPM
Rapid Traverse Rates Z 3307 IPM
Tool Change Time T-T 2 Seconds
Tool Change Time C-C 4 Seconds
Pallet Load Capacity 1100 lbs
Maximum Tool Diameter 2.76" / 6.7"
Maximum Tool Length 14.2"
Maximum Tool Weight 26.5 lbs
Machine Dimensions 183.1"L x 75.5"W x 111"H
Machine Weight 18.960 lbs
Pro 3 (Fanuc 16iM) CNC Control. 10.4" Color LCD. Fourth Axis Rotary Table. Coolant Thru Spindle (Balcrank 1000 psi). 90 Tool Magazine. Overhead Shower Coolant. Overhead Hydraulic Fixture Clamping System. Robot Interface. GI Control. Custom Macro B with 82 Variables. AC Spindle Load Monitor. Tool Life Monitoring. Spare Tool Selection. Rigid Tapping. 1050 ft. Memory. Rear Discharge Filcon Filter and Chip Conveyor System. Oil Chiller. Air Dryer.
