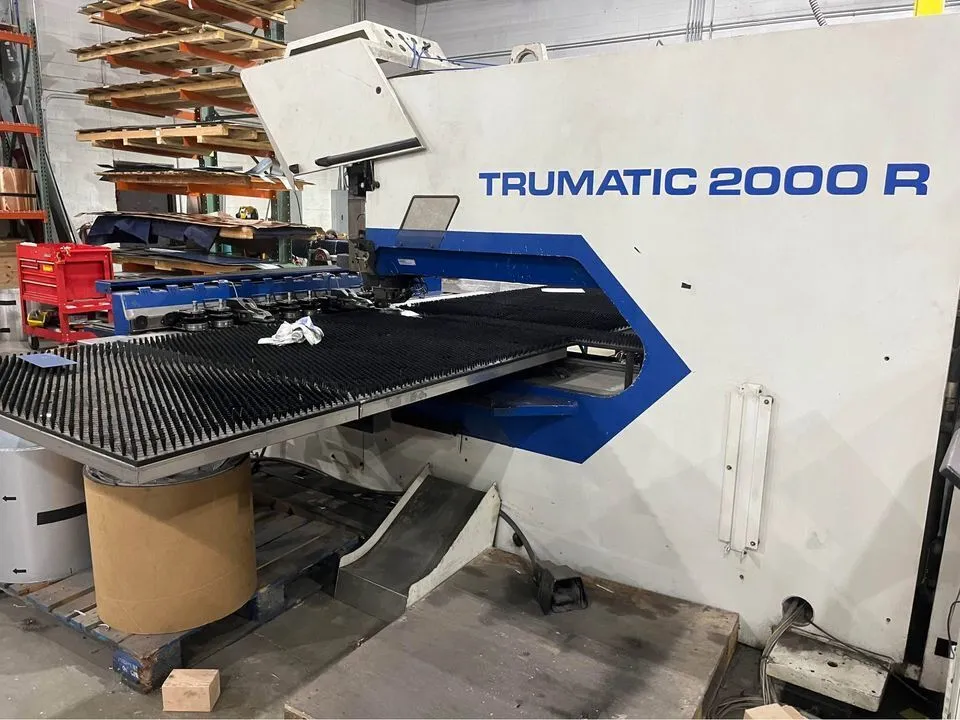

Trumpf Trumatic 2000R CNC Turret Punch
Have one to sell?
ConditionUsed
1 available
Trumpf Trumatic 2000R CNC Turret Punch
Tonnage: 22 T
Table L: 50″
Table W: 50″
X-Axis: 50″
Y-Axis: 50″
# Turret Stations: 9
Max Sheet Weight : 165 LBS
Max Material Thickness: 0.25″
Stroke Rate (1mm pitch): 900 L/MIN
Stroke Rate (25mm pitch): 420 L/MIN
X-Axis Speed: 35×43 IPM
Y-Axis Speed: 2362 IPM
X/Y Simultaneous: 4251 IPM
Rapid Traverse (X/Y): 3550 / 2360 IPM
Control: CNC (BOSCH)
Dimensions: 224.5″ X 161″ X 89″
Weight: 17,637 LBS
