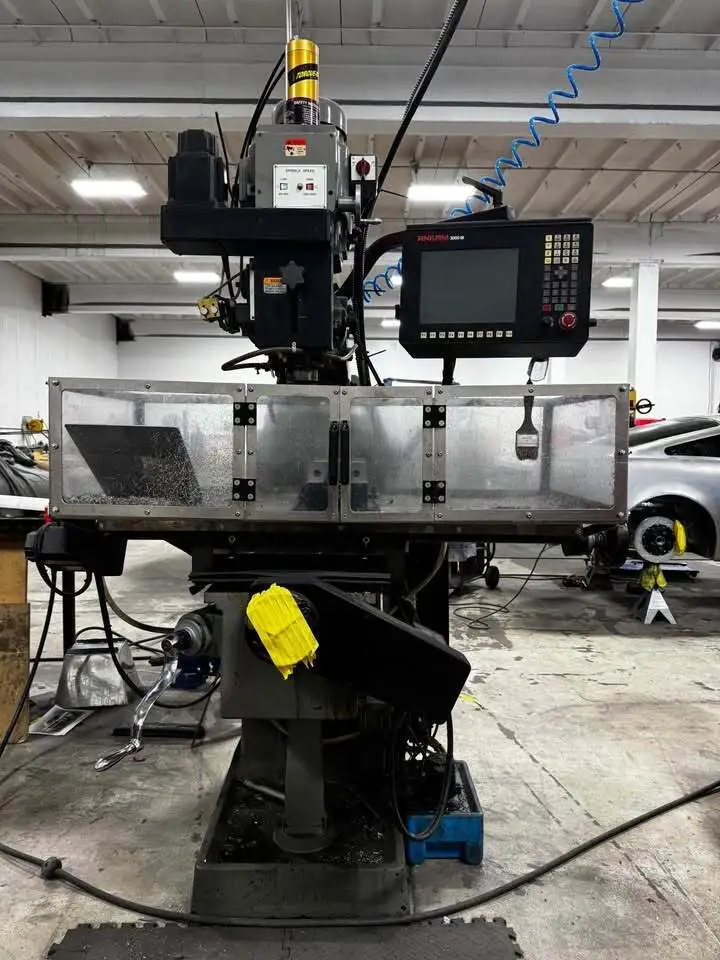

Sharp TMV-1 CNC Vertical Mill (2008)
Have one to sell?
ConditionUsed
1 available
This model Vertical Knee Mill is constructed with box ways instead of dove tail ways. The model has many unique features compared with most of the similar machines on the market.
The quill is CNC ground to a mirror finish and chromed to fit the housing resulting in close to jig bore accuracy for quill downfeed.
Tapered gibs installed on the ways allows easy adjustment for long term usage.
The feed handles are designed to spin free which eliminates the friction between the operator’s hand and the feed handle.
The bottom of the saddle, instead of the top of the knee ways, which rides on the knee, is hand scraped for better oil retention and prevent dirt and chips from embedded in the knee ways.
Sharp TMV-1 CNC Vertical Mill (2008)
10 x 54 ins table, 16.3 x 39 ins travel
R-8 spindle, 5 HP motor , variable speed (60-4,500 rpm)
Spindle runout of no more than 0.0002 ins TIR
Hardened and ground box ways, column, base
Head tilt side to side, up and down
One shot lubrication with back flow valve
Tapered gibs for adjustment
Anilam CNC Control
power Draw Bar
Table Splash Guard Half Height Enclosure
