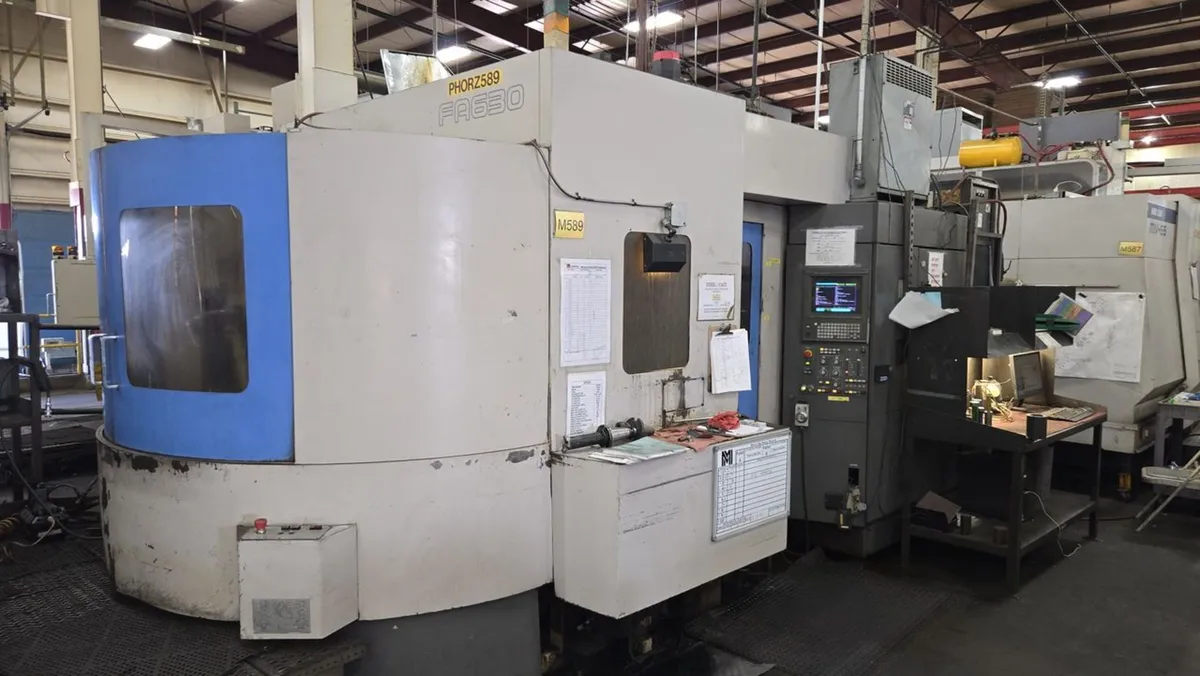

Toyoda FA630 Horizontal Machining Center (1998)
Have one to sell?
ConditionUsed
1 available
Toyoda Model FA630 CNC Horizontal Machining Center, (1998); with GE Fanuc Series 15-M CNC Controls, 120-Position Automatic Tool Changer, 24.8 in. x 24.8 in. Pallet Tables, 1-degree Table, 33.276 in. X-Axis Travel, 35.433 in. Y-Axis Travel, 36.417 in. Z-Axis Travel, 19.7 in. Max. Tool Length, 11.8 in. Max. Tool Dia., 60 lbs. Max. Tool Weight, 1,181 IPM X & Y-Axis Rapid Traverse, 1,181 IPM Z-Axis Rapid Traverse, 2 sec. Chip-to-Chip Tool Change, Rigid Tapping, 8,000 RPM, 30/22 Horespower, Transformer, Yamazan Vega 2000 Rapid Feed High Pressure Coolant System Rated at 13-GPM and 2,000 PSI, Coolant Thru Spindle, Filtration System
Toyoda FA630 Horizontal Machining Center (1998)
Z-Axis Travel: 29.52"
Y-Axis Travel: 33.46"
X-Axis Travel: 39.37"
Tool to Tool Change Time: 30 Sec.
Tool Changer Capacity: 120
Spindle Tool Taper: CAT #50
Spindle Speed: 8000 RPM (Maximum)
Rapid Traverse Rate: 1417 IPM
Pallet Size: 24.8" x 24.8"
Number of Pallets: 2
Maximum Tool Weight: 59.4 Lbs
Maximum Tool Length: 15.75"
Maximum Tool Diameter: 4.72"
Indexing: 1 Degree
GE Fanuc Series 15-M CNC Controls, 120-Position Automatic Tool Changer, Transformer, Yamazan Vega 2000 Rapid Feed High Pressure Coolant System Rated at 13-GPM and 2,000 PSI, Coolant Thru Spindle, Filtration System
