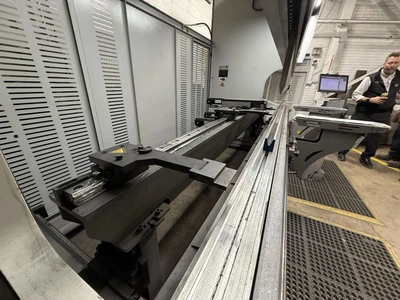

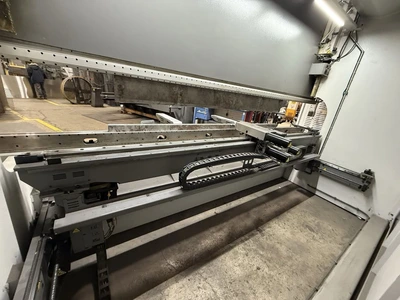

Bystronic XACT Smart 225/4100 CNC Hydraulic Press Brake (2017)
Sold

Bystronic XACT Smart 225/4100 CNC Hydraulic Press Brake (2017)

Press Brakes-Hydraulic Power
Manufacturer:
BYSTRONIC
Model:
XACT SMART 225/4100
Year:
2017
Stock #:
93044
Country:
United States
225 Ton x 161", 7 Axis, Easy to set up and program, the Xact Smart press brake combines high bend accuracy with advanced features in an affordable, high-value package that enables a fast entry into bending technology. The Xact Smart press brake has the ability to bend simple angles to complex parts, creating a high degree of flexibility for fast job changes and for use as a fixed bending station. Programming is simple and intuitive from the design to the finished bent part.
size225 ton225 ton
Tonnage225 T204.117 t
TypeHYDHYD
Overall Length4,100 mm13.45'
Between Housings3,420 mm11.22'
Stroke300 mm11.811"
ControlCNC (ByVision CNC Bending Control)CNC (ByVision CNC Bending Control)
Dimensions17' L x 7' W x 10'-2" High17' L x 7' W x 10'-2" High
Weight35,00035,000

Bystronic Xact Smart 225X4100 225 Ton x 161" CNC Hydraulic Press Brake

Make: Bystronic
Model: Xact Smart 225/4100
Working length mm: 161"
Max. press force kN: 2250
Max. stroke mm: 11.81
Open Height: 18.4"
Rapid approach mm/sec.: 160
Working speed mm/sec.: 1-13
Return speed mm/sec: 170
Weight kg: 16,500

Electrical Values
Power of main motor kW: 22
Total connected load kW: 35
Operating voltage V: 480 TN
Frequency HZ: 3-60
Control voltage V DC: 24
Nominal current A: 50

7 Axis Byvision Bending control
Cnc controlled hydraulic crowning
Hydraulic upper tool clamping
Oil cooling unit
Heat exchanger
Floor standing control
