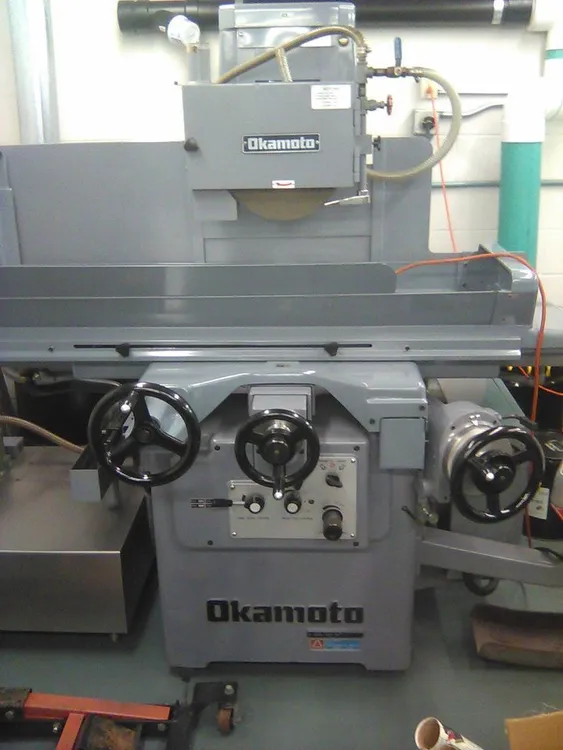

Okamoto 1224 Hydraulic Surface Grinder

Okamoto 1224 Hydraulic Surface Grinder

Grinding Capacity Maximum, W x L 12" x 24"

Table Working Surface, W x L .......... 10.813" x 23.75"

Grinding Width Capacity, Maximum .......... 12"

Grinding Length Capacity, Maximum .......... 24"

Height Under 12" Grinding Wheel .......... 13.5"

Table Longitudinal Travel .......... 27.5"

Table Cross Travel .......... 12"

Grinding Wheel Diameter 12"

Grinding Wheel Width 1.5"

Grinding Wheel Hole Diameter 5"

Table Longitudinal Feeds, Range .......... 1 to 100 FPM

Table Cross In-Feeds, Range .......... .04 to .4 IPR

Spindle Vertical Feeds, Range .......... .0001 to .005 IPR

Power Rapid Vertical Traverse .......... 14 IPM

Grinding Wheel Spindle Motor .......... 5 HP/1730 RPM

Hydraulic System Motor .......... 2 HP

Power Elevation Motor .......... 1/2 HP

Electrical System .......... 230-460/3/60

Floor Space Required, L x W 98.5" x 67"

Overall Height 83"

Weight Approximately 4900 LBS
