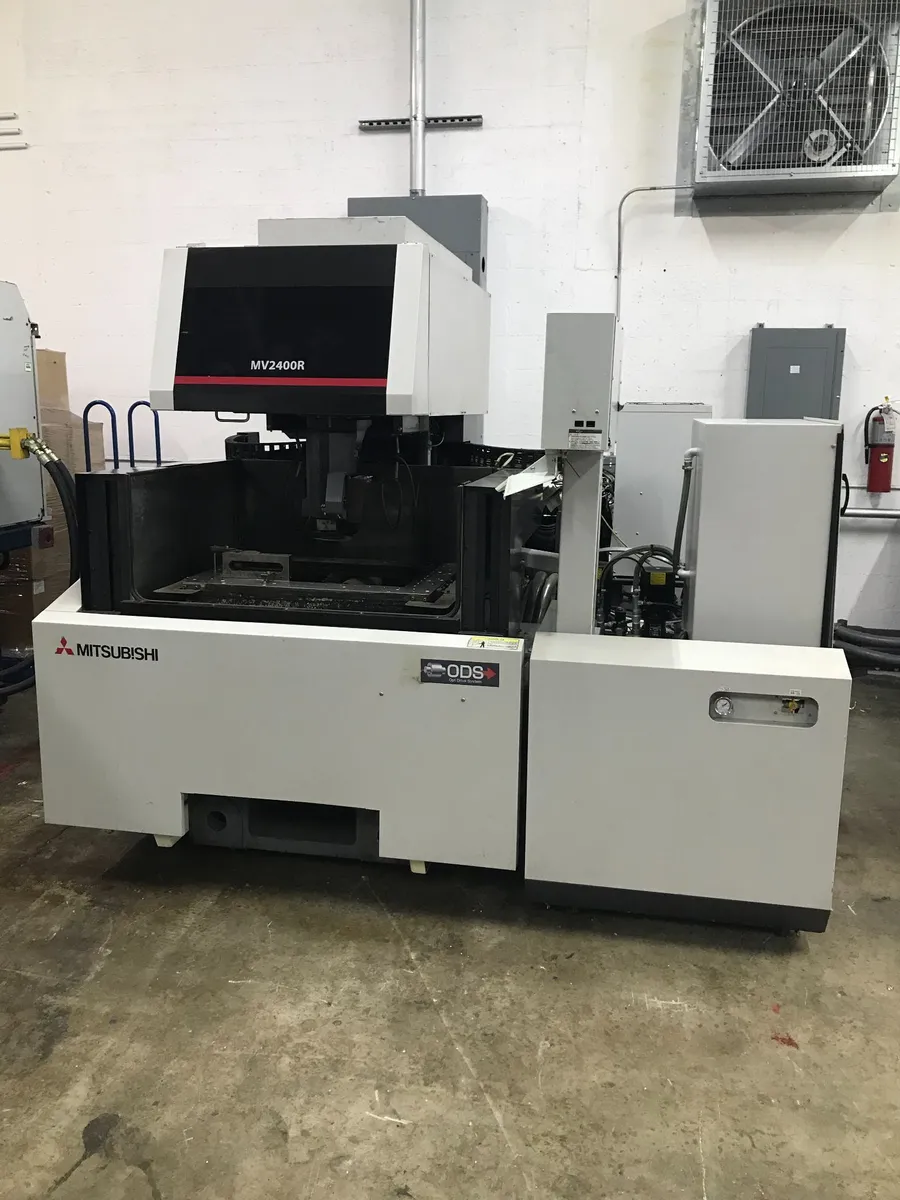

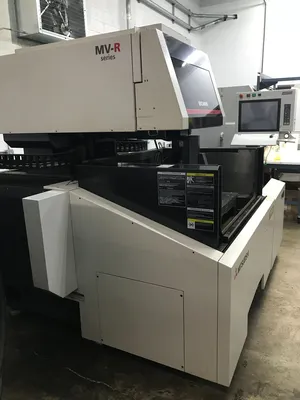

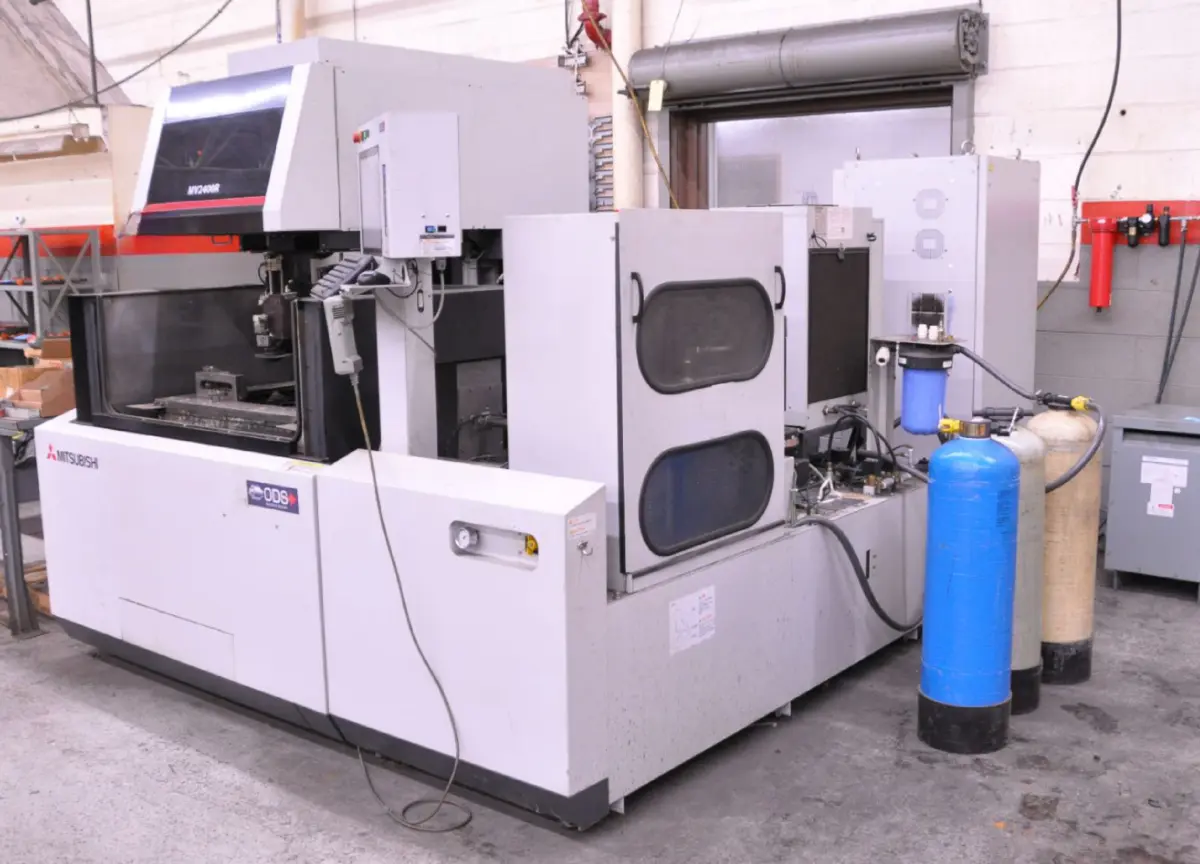

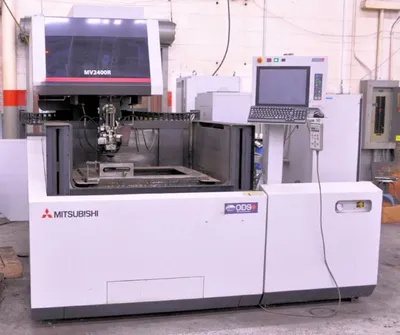

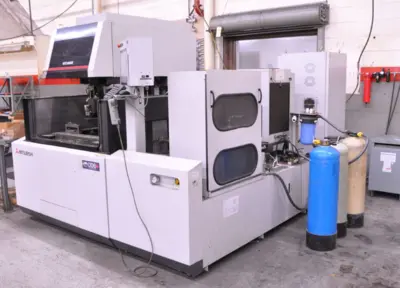

Mitsubishi MV2400R Electrical Discharge Machine (2013)
Have one to sell?
ConditionUsed
1 available
A perfect solution for applications requiring ± .0001 tolerance – with a larger tank capacity, and the lowest cost of operation in the industry.
The innovative MV-R series features improvements in machine construction, auto-threading, internal machine communication, power supply technology, and operating costs. It also showcases Mitsubishi’s continuous dedication to high precision through innovations—including the highly reliable non-contact cylindrical drive system on the X, Y, U, and V axis drives. The technology available with the MV2400-R Advance Plus M800 represents significant advancements in wire EDM technology.
Mitsubishi MV2400R Electrical Discharge Machine (2013)
Machine Travels: X x Y x Z in (mm) 23.6 x 15.7 x 12.2 (600 x 400 x 310)
Maximum Workpiece Dimensions: W x D x H in (mm) 41.3 x 32.3 x 12.0 (1050 x 820 x 305)
Max. Submerged Workpiece Weight: lb (kg) 3307 (1500)
Table Dimensions: in (mm) 33.0 x 25.2 (840 x 640)
U/V Travels (from center): in (mm) ±3.0 x ±3.0 (±75 x ±75)
Taper Angle @ Thickness: in (mm) 15 deg.@ 10.2 (15 deg.@ 260)
Wide Angle Taper (Optional Guides Required) 45 deg. @ 2.4″ 60mm (No AT Possible)
Table Rapid Feed Speed: in/min (mm/min) 51.2 (1300)
Power Supply V350-V
Minimum Drive Unit / Resolution 0.000002 / 2 µin ( 0.00005 / 50nm)
User Program Storage [Hard Disk Size] 1 GB [32 GB CFAST Card Size]
Wire Diameter Possible: in (mm) 0.004~0.012 (0.1~0.3)
Minimum Start Hole Diameter: in (mm) 0.02 (0.5)
Max. Wire Spool size On Machine / Cabinet STD: lb (kg) 22 / 44 (10 / 20)
Filters / Type 2 / Paper
Filter Tank Capacity: gal (L) 227 (860)
Machine System Dimensions: in (mm) 105.8 x 119.3 (2687 x 3030)
Machine Installed Height: in (mm) 84.6 (2150)
Machine System Weight: lb (kg) 7716 (3500)
Fluid System Weight: lb (kg) 711 (350)
Power Requirements [KVA] 200-230V [13.5] Built in AVR
Compressed Air Requirements 2.7 cu.ft./min. @ 71~100 psi
