| size | 18" Chuck | 18" Chuck |
| Swing | 40" | 1,016 mm |
| Machining Length | 51" | 1,295.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 7" | 177.8 mm |
| Max RPM | 1,400 RPM | 1,400 RPM |
| Turning Dia | 25.5" | 647.7 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Dimensions | 210 “ x 90” x 90” H | 210 “ x 90” x 90” H |
| Weight | 28000 | 28000 |

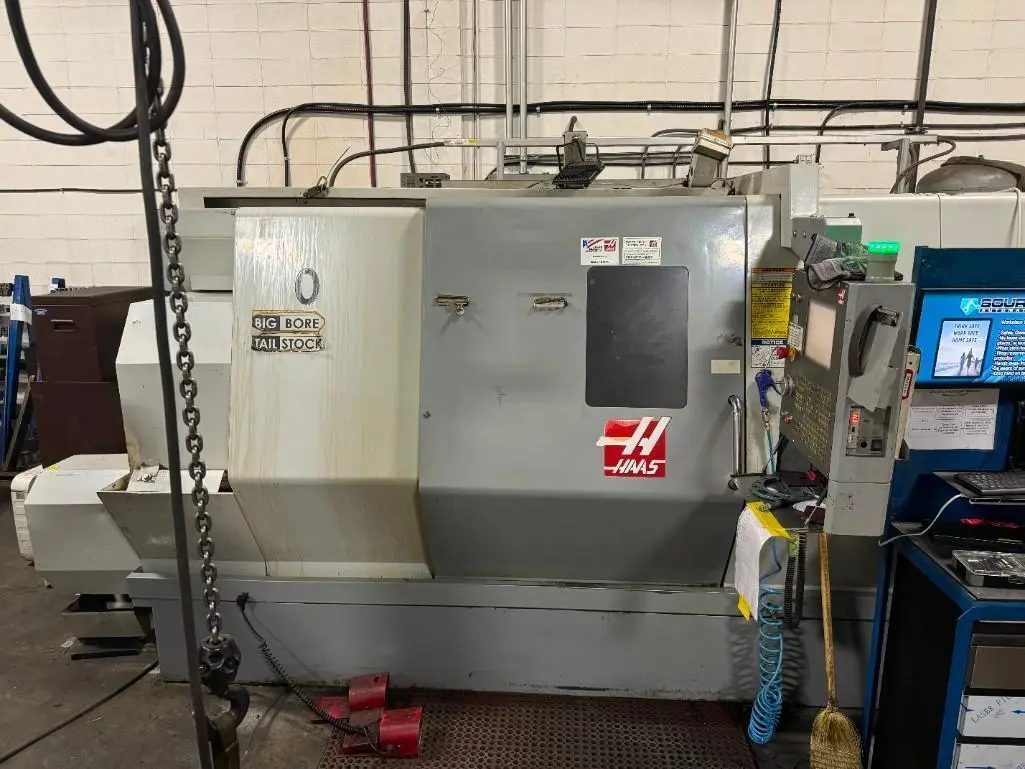

Haas SL-40TB Big Bore CNC Lathe (2006)
Swing
40"
Turning Diameter
25.5"
Spindle Speed
1,400 RPM
Control
Haas CNC
Distance Between Centers
44"
Turret
10 Station
Power Requirement
208/220V
Chip Removal
Chip Conveyor
Swing Over Bed
40"
Tailstock Travel
44"
X-Axis Travel
17"
Z-Axis Travel
34"
Rapid Traverse X/Z-Axis
710 IPM
Turret Index Time
1 Second
Approximate Dimensions
210 “ x 90” x 90” H
Approximate Weight
28,000 Lbs
Big Bore, Tailstock
This equipment has been sold. Similar equipment available now is shown below.
