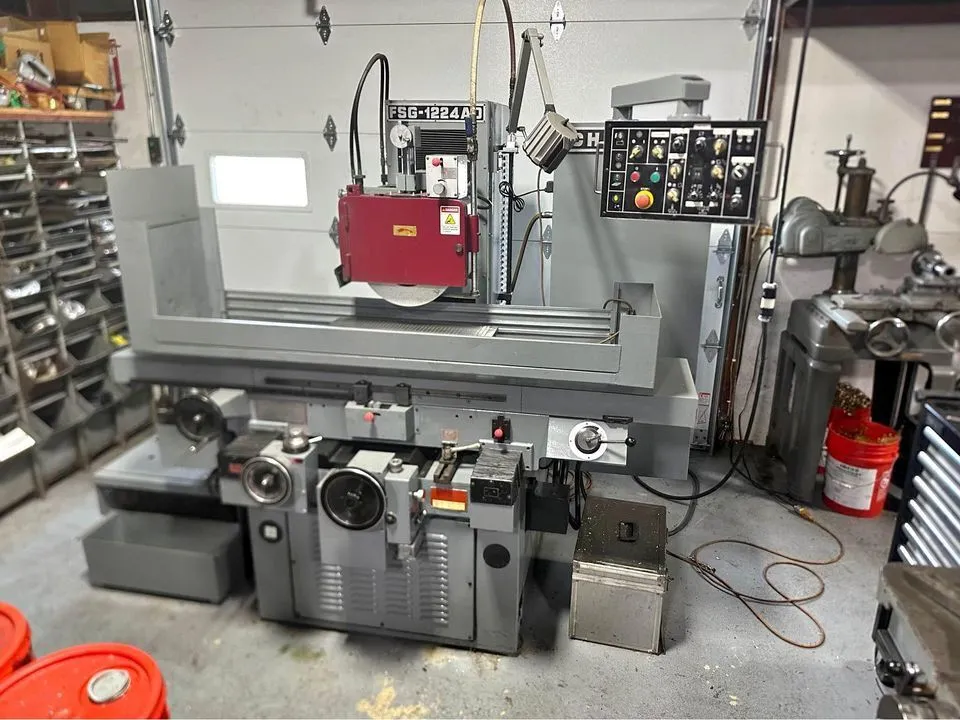

Chevalier FSG-1224AD Hydraulic Surface Grinder

Table Size - 12″ x 24″
Max. Grinding Length - 24″
Max. Grinding Width - 12″
Max. Distance from Table Surface to Spindle Centerline - 24.8″
Standard Magnetic Chuck Size - 11 3/4″ x 23 5/8″
Travel, Hydraulic - 25 5/8″
Max. Travel, Manual - 27 1/2″
Table Speed, Variable - 16~82fpm
Crosswise Rapid Travel, Approx. - 56imp
Auto Increment - 0.04~0.47″
Crosswise Max. Auto Travel - 14 1/8″
Crosswise Max. Manual Travel - 14 1/2″
Spindle Drive Speed - 60Hz/1,750rpm, 50Hz/1,450rpm
Spindle Drive Power Rating - 5HP
Hydraulic Drive Power Rating - 2HP
Crossfeed Drive Power Rating - 0.05HP
Elevating Drive Power Rating - 0.25HP
Grinding Wheel Diameter - 14″
Grinding Wheel Width - 2″
Grinding Wheel Bore - 5″
Rated Power - 10HP
