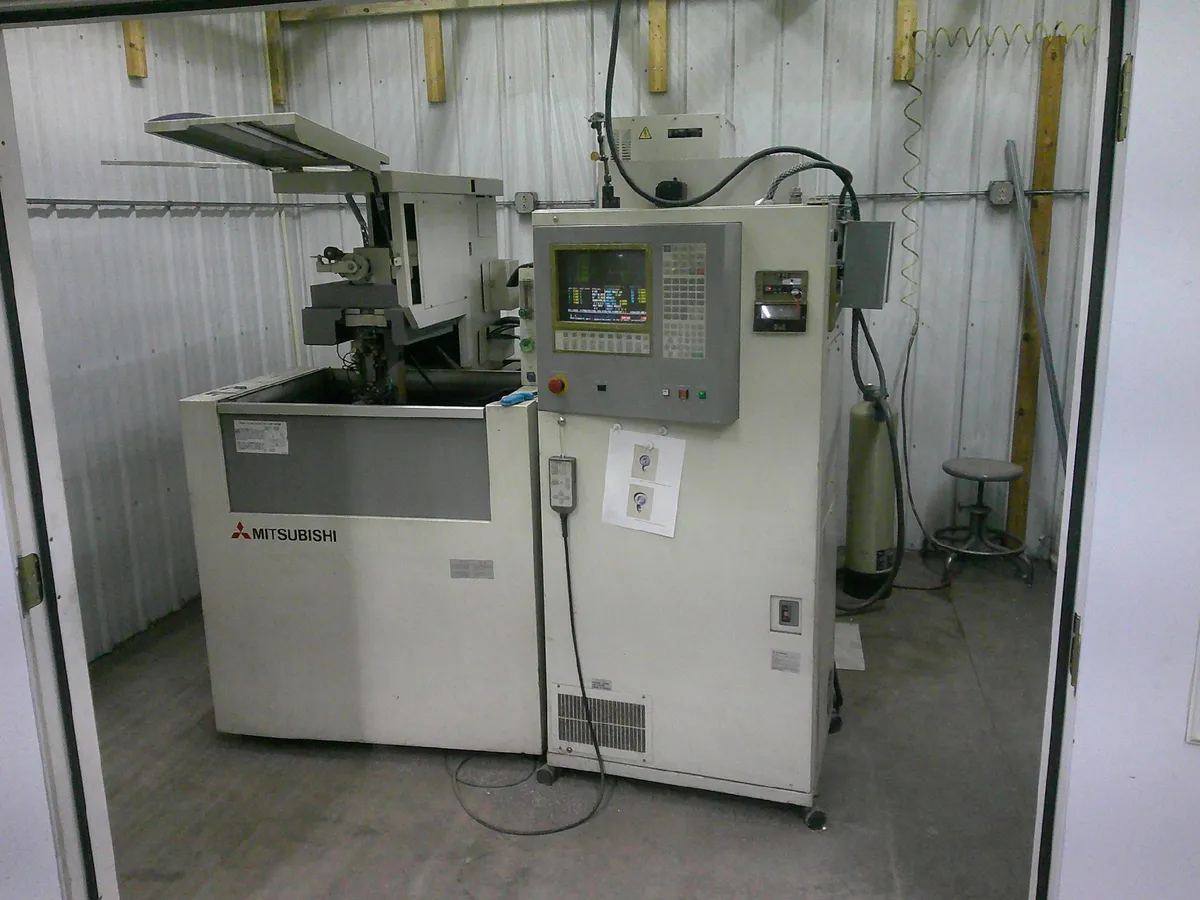

Mitsubishi FX-10 5-Axis Wire Type Electrical Discharge Machine (1996)

Mitsubishi FX-10 5-Axis Wire Type Electrical Discharge Machine
Table size: 24.8" X 20.86"
Maximum work-piece size: 31.49" X 22.63" X 8.64"
Maximum work-piece weight: 1,102 Pounds
X-Axis travel: 13.77"
Y-Axis travel: 9.84"
Z-Axis travel: 8.66"
U-Axis travel: 1.25"
V-Axis travel: 1.25"
Maximum taper angle: 17 Degrees @ 3.93" work height
Wire diameter: 0.012" to 0.008"
Wire spooling speed: 0 to 9.8 inches per second
CNC Type: Mitsubishi
Equipped With:
105 Gallon dielectric reservoir
Paper cartridge filtration system
Automatic wire feed
Operator's pendant control
