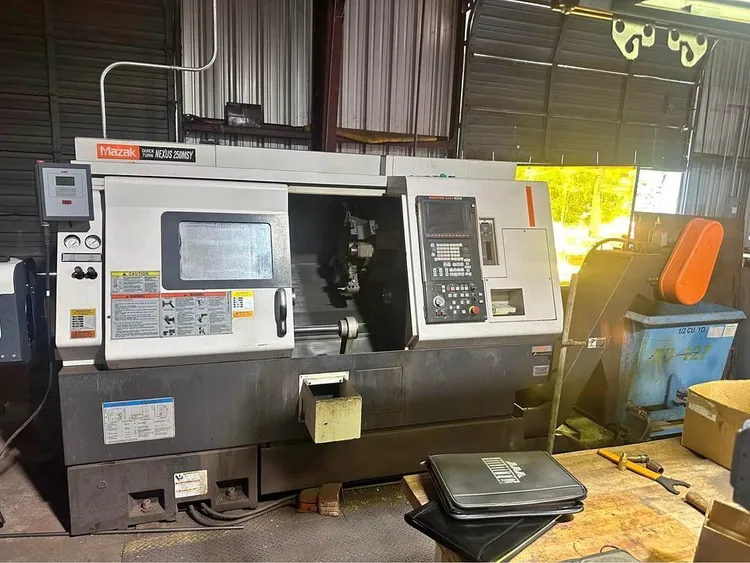

Mazak Model Quick Turn Nexus 250MSY Sub Spindle CNC Lathe (2005)

Mazak Model Quick Turn Nexus 250MSY Sub Spindle CNC Lathe
Max. Swing: 26.58 In
Max. Machining Diameter: 14.75 In
Max. Turning Distance: 21.27 In
Max. Bar Work Diameter: 3 In
X-Axis Travel: 9 In
Z-Axis Travel: 22.63 In
C-Axis Indexing: 0.0001 Deg.
Spindle Speed: 4000 RPM
Spindle Nose: A2-8
Spindle Bore: 3.46 In
Turret Type: Modified VDI
X-Axis: 1181 IPM
Z-Axis: 1299 IPM
2nd Spindle: 1181 IPM
Second Spindle Speed: 6000 RPM
2nd Spindle Bore: 2.07
Rotary Tool Speed: 4500 RPM
Main Spindle Drive: AC 35 HP
Second Spindle Motor: AC 15 HP
Rotary Tool Spindle (10 Min.): AC 7.5 HP
