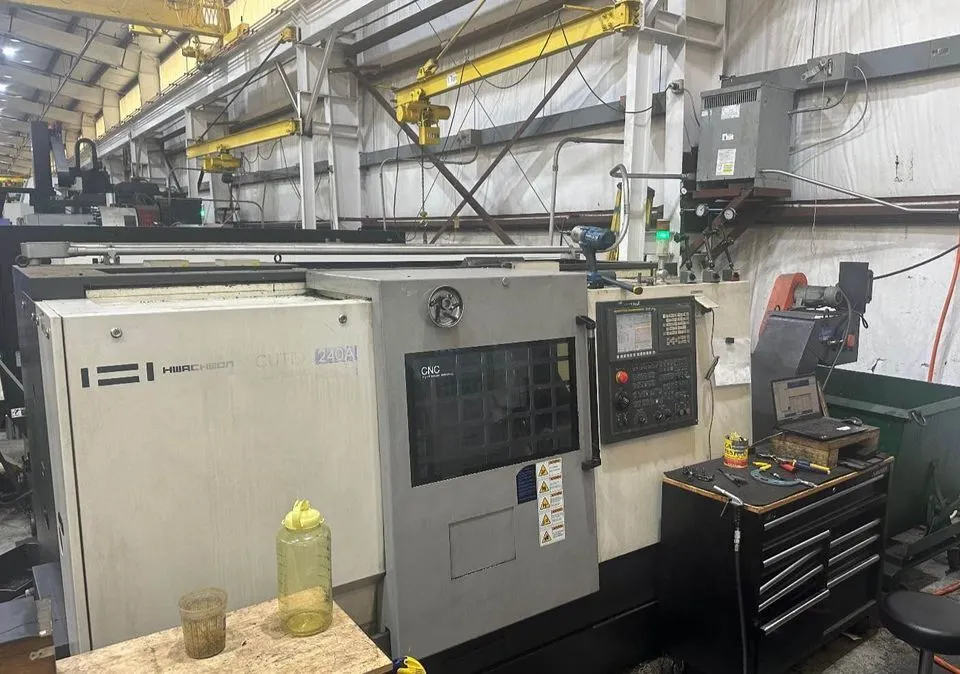

Hwacheon Cutex 240A CNC Lathe (2011)
Have one to sell?
ConditionUsed
1 available
Maximum productivity and reliability - the compact lathes of the CUTEX series
Thanks to the turret’s short indexing time of just 0.15 seconds and the high rapid traverse speed of 36 m/min, non-productive time is significantly reduced.
High rigidity linear guideways
The CUTEX-240 is equipped with high rigidity linear guideways on all axes, allowing feed rates of up to 36 m/min, thus reducing non-productive time and simultaneously contributing to higher machining accurac
Hwacheon Cutex 240A CNC Lathe (2011)
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 6,000 RPM
Spindle Motor: 25 HP
X Axis Travel: 8.5"
Z Axis Travel: 27.6"
Rapid Rate Z Axis: 1 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1 IPM
Max Turning Length: 23.6"
Max Swing: 22.8"
Dimensions: 127" x 71" x 75"
Weight: 9,260 LBS
